PK 27001-EH High Performance

Single Link Plus - High variety of uses even under difficult conditions

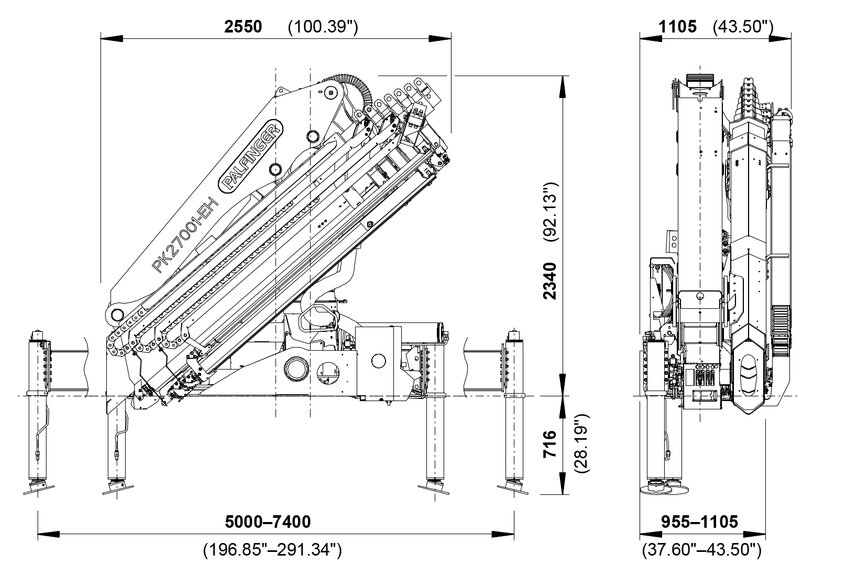

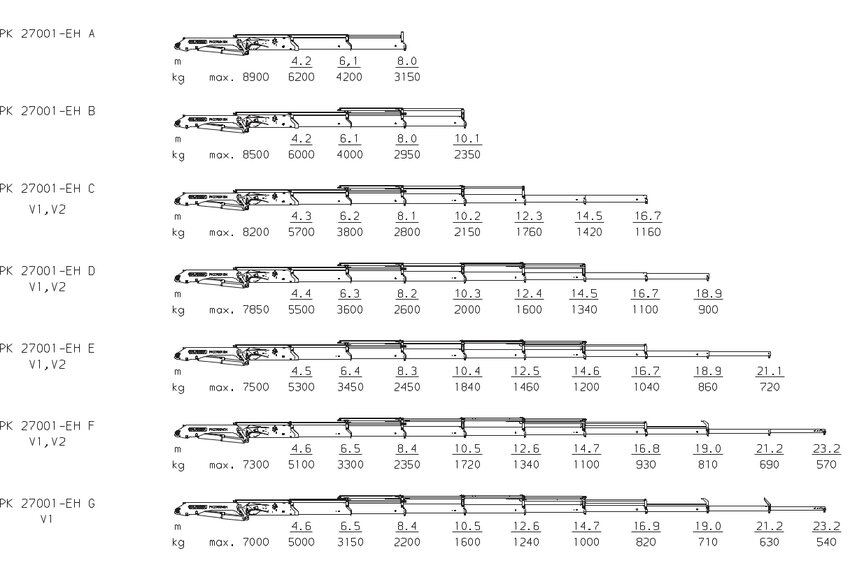

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	25.8 mt	8.1 m	400 °	2.8 mt	35.0 Mpa	75-100 l/min	2578 kg	2340 mm	2550 mm	955 mm	7966.22 mm	8900 kg	3150 kg
B	25.2 mt	10.3 m	400 °	2.8 mt	35.0 Mpa	75-100 l/min	2779 kg	2340 mm	2550 mm	955 mm	10146.22 mm	8500 kg	2350 kg
C	24.7 mt	12.5 m	400 °	2.8 mt	35.0 Mpa	75-100 l/min	2959 kg	2340 mm	2550 mm	1030 mm	12326.22 mm	8200 kg	1760 kg
D	24.1 mt	14.6 m	400 °	2.8 mt	35.0 Mpa	75-100 l/min	3136 kg	2340 mm	2550 mm	1070 mm	14506.22 mm	7850 kg	1340 kg
E	23.6 mt	16.9 m	400 °	2.8 mt	35.0 Mpa	75-100 l/min	3282 kg	2340 mm	2550 mm	1070 mm	16736.22 mm	7500 kg	1040 kg
F	23.2 mt	19.1 m	400 °	2.8 mt	35.0 Mpa	75-100 l/min	3395 kg	2340 mm	2550 mm	1105 mm	18966.22 mm	7300 kg	810 kg
G	22.9 mt	21.3 m	400 °	2.8 mt	35.0 Mpa	75-100 l/min	3504 kg	2340 mm	2550 mm	1105 mm	21196.22 mm	7000 kg	630 kg
