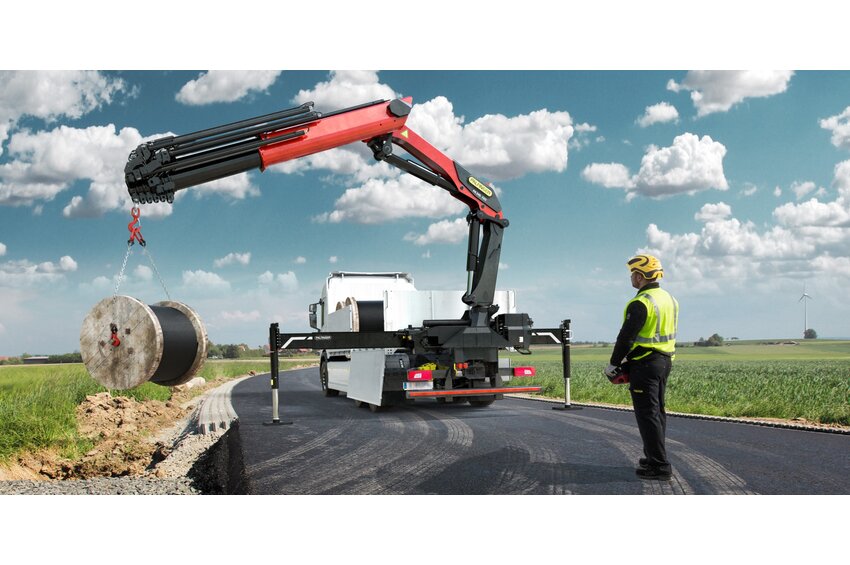

PK 245 TEC

• More intelligent operation with PALTRONIC 180 control electronics
• Very stiff and light boom system thanks to P-Profile
• High user friendliness due to in-house developed radio remote control PALcom P7
• Maximum utilisation of the working range thanks to extended HPSC
• More lifting power due to S-HPLS
• Practical and attractive due to Functional Design

Technical data

Max. lifting moment	23,5 mt
Max. lifting capacity	7100 kg
Max. hydraulic outreach	20,0 m
Slewing angle	408°
Slewing torque with 1 gear	2,5 mt

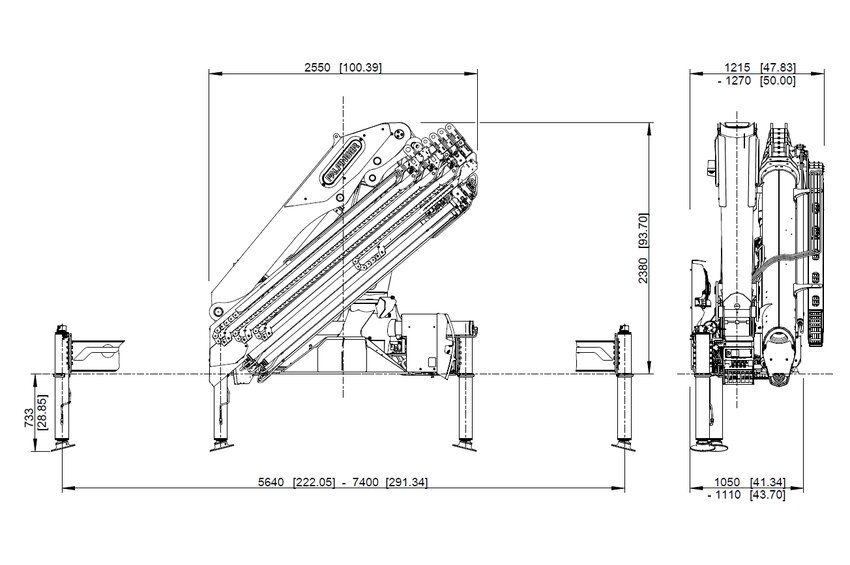

Stabiliser spread (std)	5.6 m
Fitting space required (std)	1,05 m
Width folded	2,55 m
Max. operating pressure	385 bar
Pump capacity	80 - 100 l/m
Weight	2420 t
Max. outreach (with fly jip)	28,2 m

Technical data

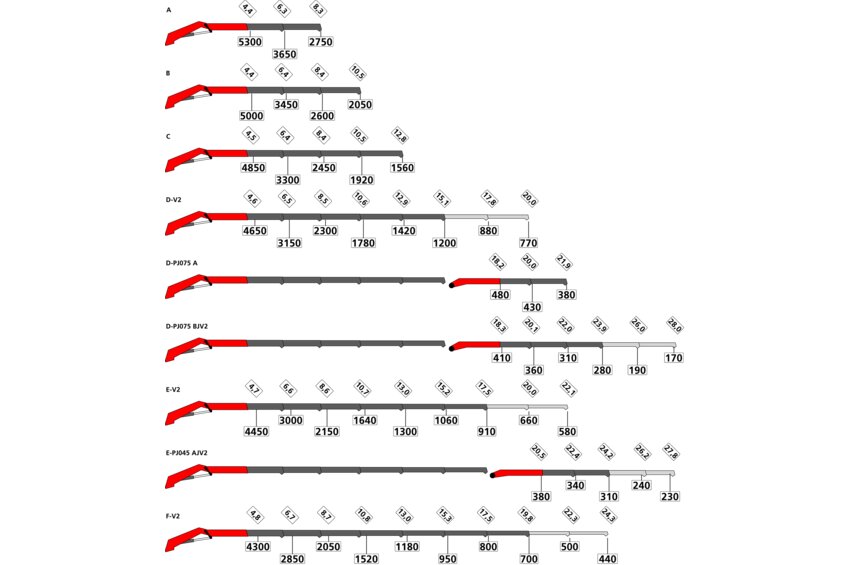

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	22.8 mt	8.4 m	408° °	2.5 mt	38.5 Mpa	80 - 100 l/min l/min	2420 kg	2380 mm	2550 mm	1050 mm	-	-	-
B	22.4 mt	10.6 m	408° °	2.5 mt	38.5 Mpa	80 - 100 l/min l/min	2570 kg	2380 mm	2550 mm	1050 mm	-	-	-
C	21.9 mt	13.0 m	408° °	2.5 mt	38.5 Mpa	80 - 100 l/min l/min	2700 kg	2380 mm	2550 mm	1050 mm	-	-	-
D	21.4 mt	15.3 m	408° °	2.5 mt	38.5 Mpa	80 - 100 l/min l/min	2850 kg	2380 mm	2550 mm	1050 mm	-	-	-
E	21.0 mt	17.6 m	408° °	2.5 mt	38.5 Mpa	80 - 100 l/min l/min	2980 kg	2380 mm	2550 mm	1050 mm	-	-	-
F	20.6 mt	20.0 m	408° °	2.5 mt	38.5 Mpa	80 - 100 l/min l/min	3100 kg	2380 mm	2550 mm	1110 mm	-	-	-
