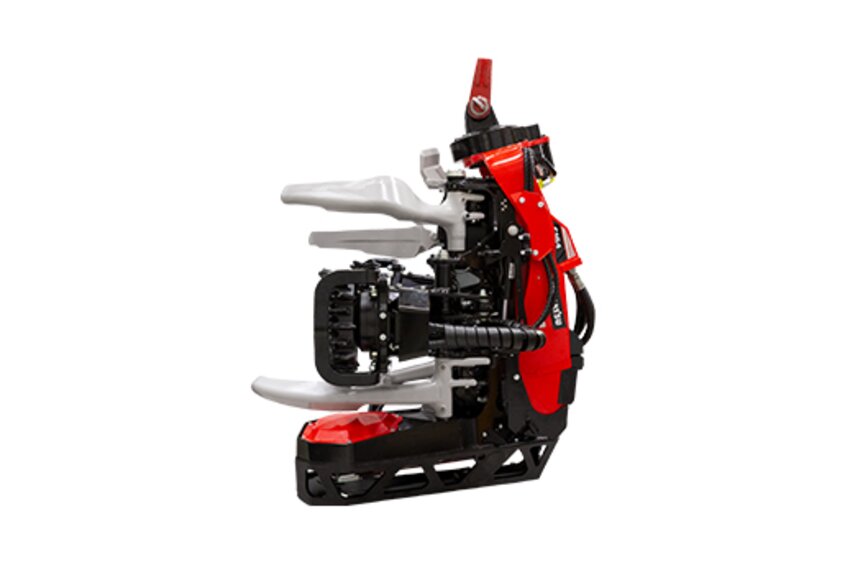

The C164 is designed to simplify the working day for harvester operators working in rough forests. Every detail has been designed with large trees, big root flares and rough limbs in mind. Despite being the largest head in the popular range of C heads the clever design makes it smooth and easy to handle on the machine. It’s a perfect match for Komatsu 951.
Technical data
| Weight | 1.672,5 kg |
|---|---|
| Max. hydraulic pressure | 28 MPa |
| Height | 1.848 mm |
| Width | 1.905 mm |
| Opening knives | 750 mm |
| Roller opening | 850 mm |
| Fell/cut diameter max. | 830 mm |
| Feed speed | 0-5 m/s |
| Gross feed force | 29,6/35,4 kN |
| Delimbing knives, number | 5 |
| Roller opening | 850 mm |
| Saw bar | 90 cm |
| Saw motor | 19 cm³/rev |
| Max. hydraulic flow | 380 l/min |
