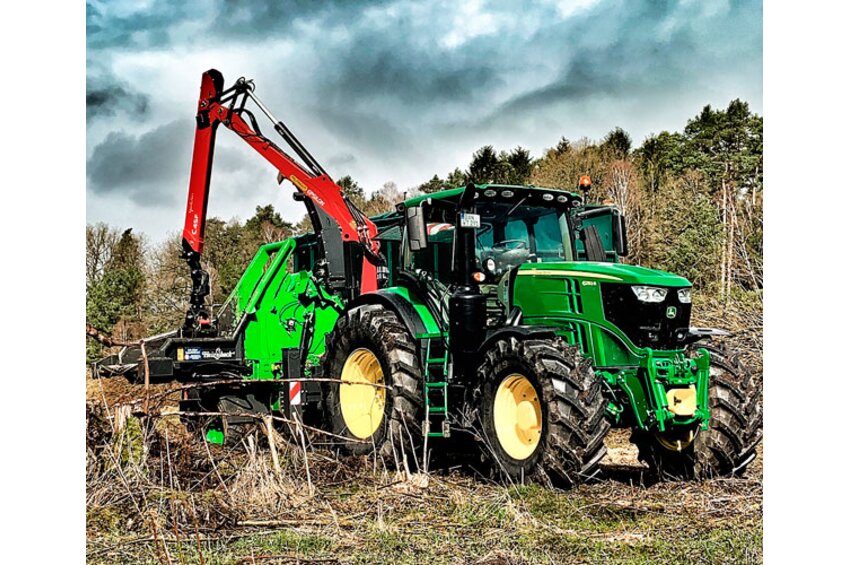

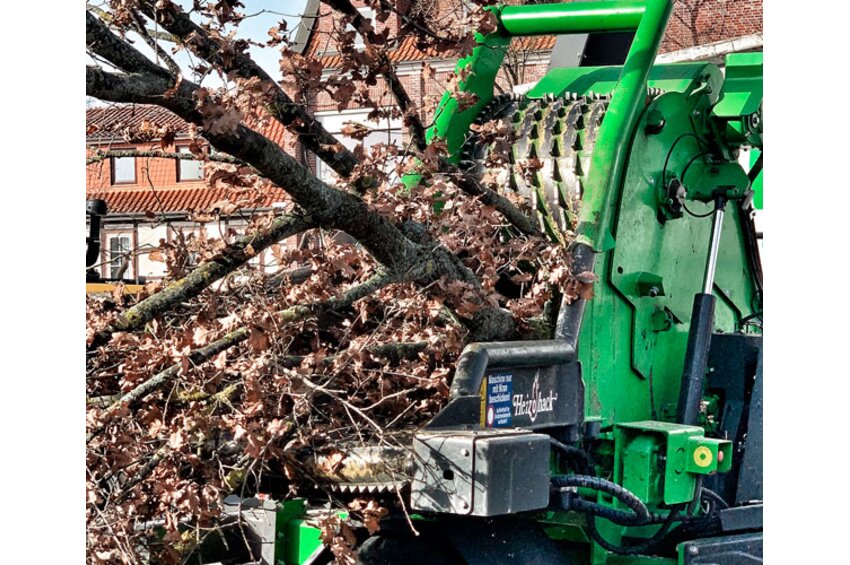

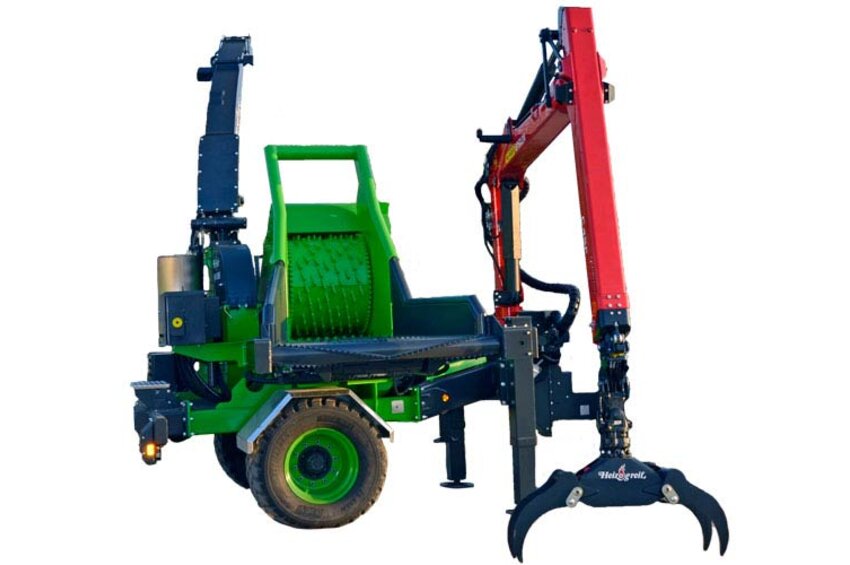

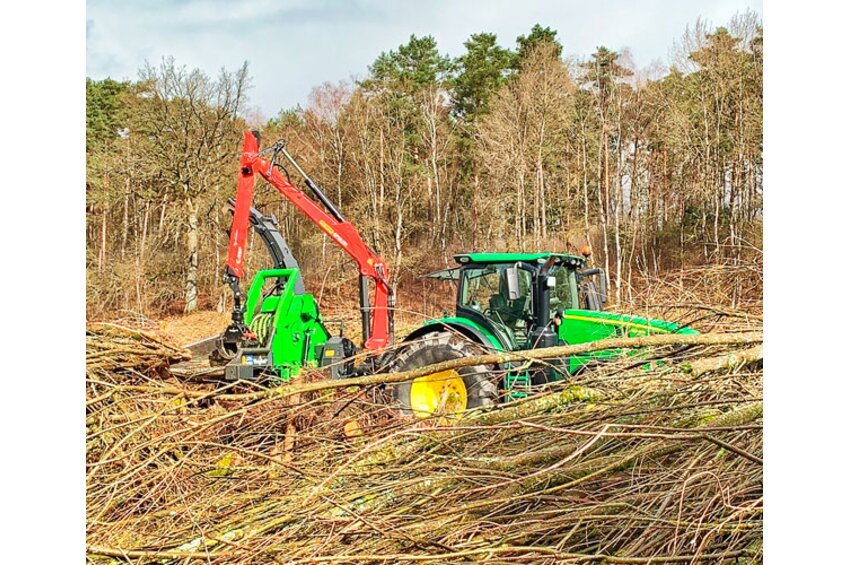

The crane-feed Heizohack chipper with a single-axle chassis and the ability to mount a loading crane on the tow bar is a very compact shredder with a fitted loading crane. Even large trees can be chipped, thanks to the additional built-in single-motor cone splitter.
More information:
- Control: automatic load-dependent feed control, with integrated cycle control
- Propulsion: it is done via cardan shaft and V-belt drive
- Factory crane design: With Palfinger Epsilon C45F67 or C45F84 type crane, optional Heizogreif energy bucket
Intake
- Conveyor belt: 900 mm
- Pressure roller, diameter: 800 mm
- Infeed table length: 1500 mm
Technical data
| Infeed height | 500 mm |
|---|---|
| Infeed width | 708 mm |
| Flywheel mass | 1000 kg |
| Quick change blades | 8 db |
| Chipping drum ⌀ | 495 mm |
| Max. drive speed | max. 1000 km/h |
| Max. performance | max. 170 kW / 230 HP |
| Grates sizes | optional |
