Heizohack HM 14-800 KTL
Heizohack HM 14-800 KTL
Heizohack HM 14-800 KTL

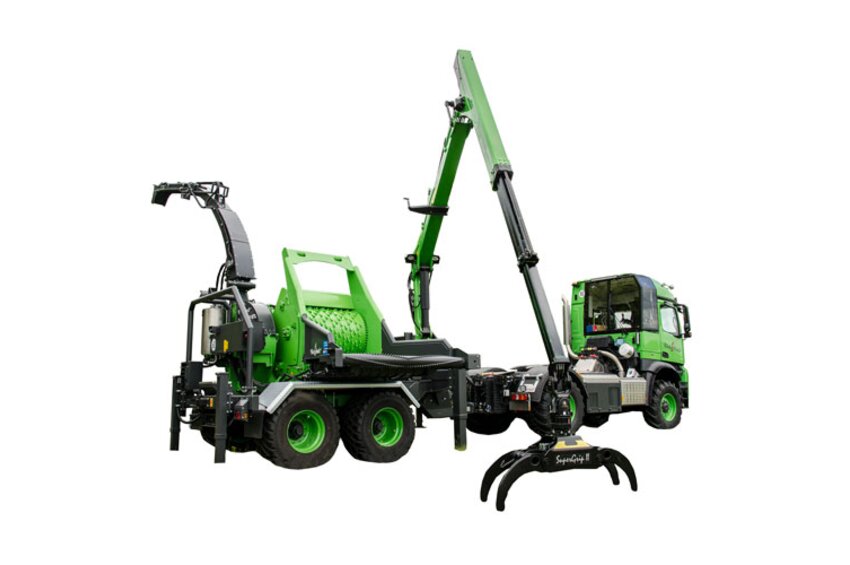

The Heizohack chipper with a tandem chassis and a loading crane on the tow bar can also be equipped with a three-motor cone splitter. With a maximum in-feed height of up to 800mm, these are among Heizomat's larger wood chippers.

More information:

  • Larger rotor
  • Even more sieve area - higher performance
  • Flexible area of use
  • 80 cm in-feed height
  • 121 cm in-feed width
  • Driven by propshaft
  • Upstream tray in-feed roller
  • Tandem chassis
  • Control: automatic load-dependent feed control, with integrated cycle control
  • Propulsion: it is done via cardan shaft and V-belt drive
  • Factory crane design: With Palfinger Epsilon C60F86 or M70F101 type crane, optional Heizogreif energy bucket.
  • Intake

  • Conveyor belt: 900 mm
  • Pressure roller, diameter: 800 mm
  • Infeed table length: 1500 mm

Technical data

Infeed height 800 mm
Infeed width 1215 mm
Flywheel mass 1000 kg
Quick change blades 14 db
Chipping drum ⌀ 695 mm
Grates sizes optional
