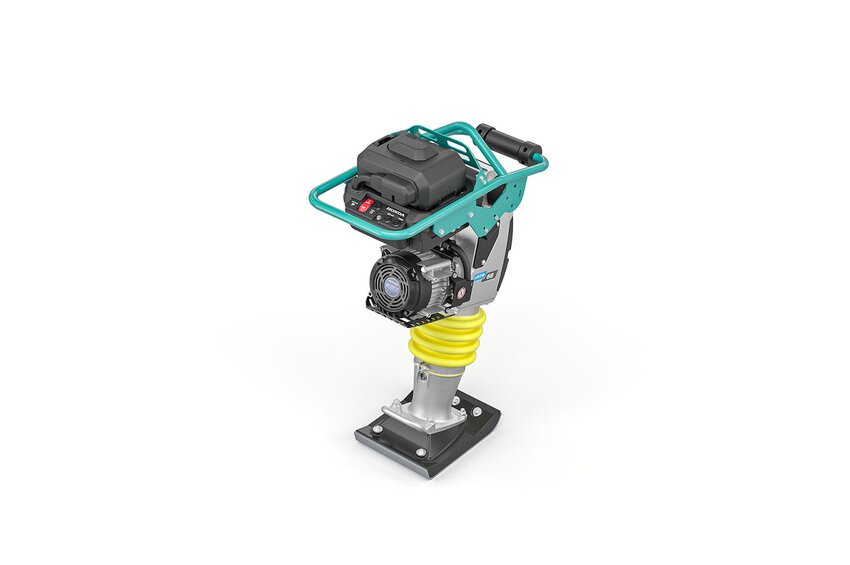

eATR 68 | © www.ammann.com

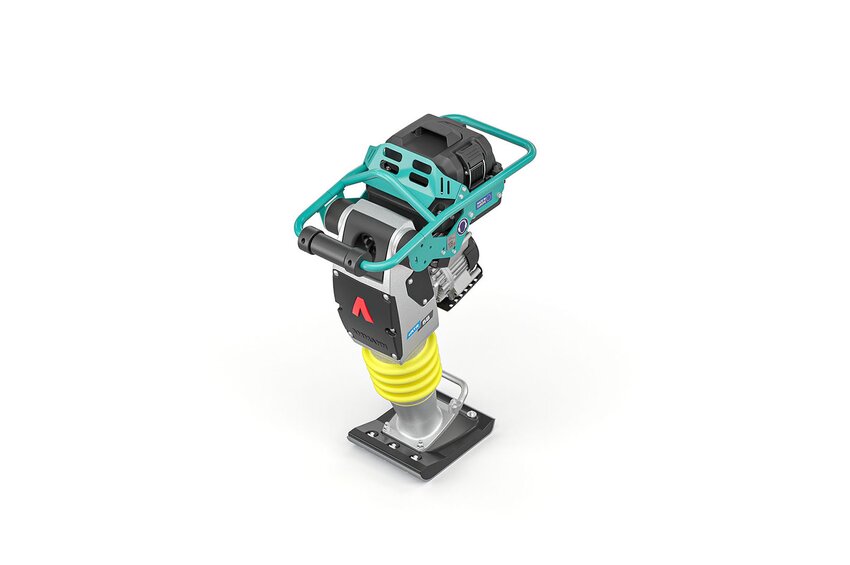

eATR 68 | © www.ammann.com

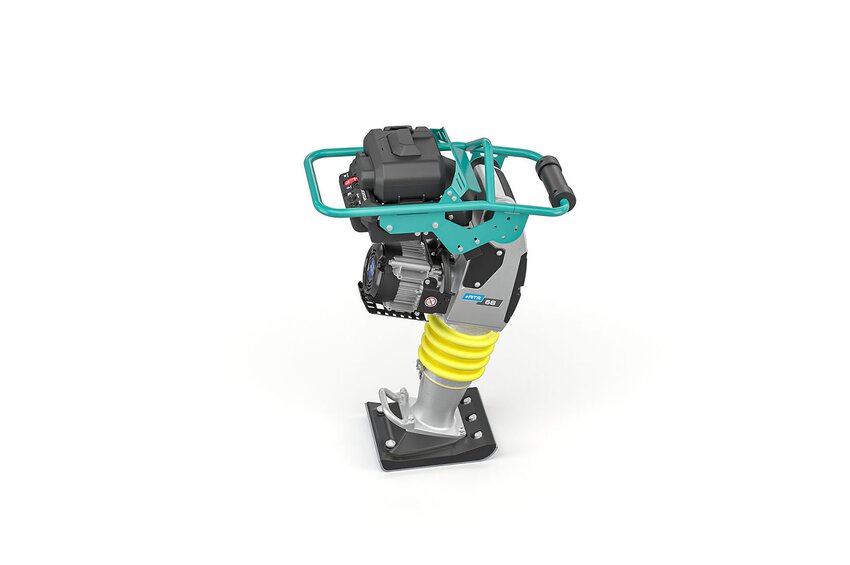

eATR 68 | © www.ammann.com

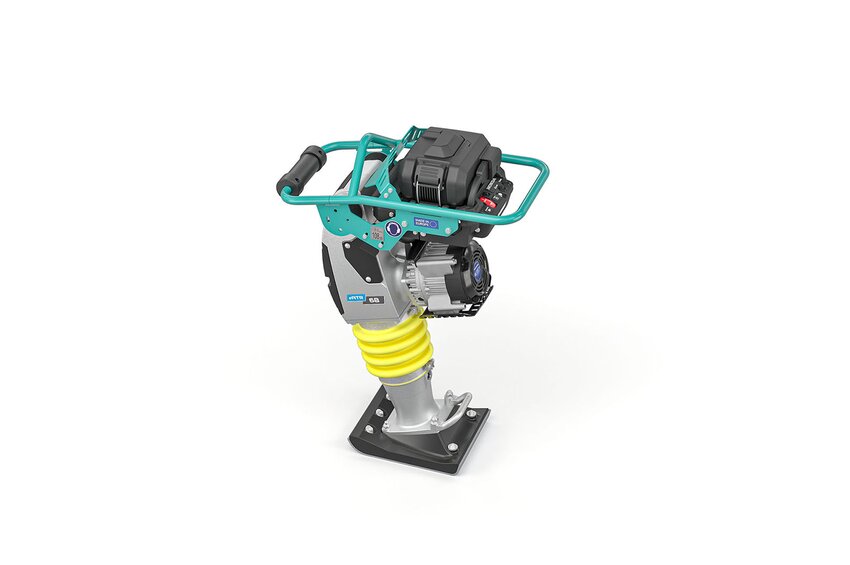

eATR 68 | © www.ammann.com

Weight & dimensions

  • Machine weight: 70 kg
  • Add. Weight battery: 6.4 kg
  • Weight charger: 11.2 kg
  • Foot length: 340 mm
  • Foot width (standard): 280 mm
  • Handle length: 730 mm
  • Machine height: 1060 mm
  • Handle width: 355 mm
  • Compaction forces
  • Percussion rate: 666 bpm
  • Stroke height: 65 mm
  • Centrifugal force: 13.5 kN

Engine

  • Engine: Honda GXE 2.0
  • Type: 3-phase PMSM
  • Engine output: 1.8 kW (2.4 HP)
  • at RPM: 3600

Battery

  • Battery: Honda DP72104Z
  • Type: Li-Ion-Battery
  • Voltage: 72 V(DC)
  • Capacity: 720 Wh / 10.0 Ah
  • Compatible charger: Honda CV7285Z

Charger

  • Charger: Honda CV7285Z
  • Type: DC Fastcharger
  • Voltage (input): 100 ~ 240 V(AC)
  • Frequency (input): 50/60 Hz
  • Max. Voltage (output): 82.8 V(DC)
