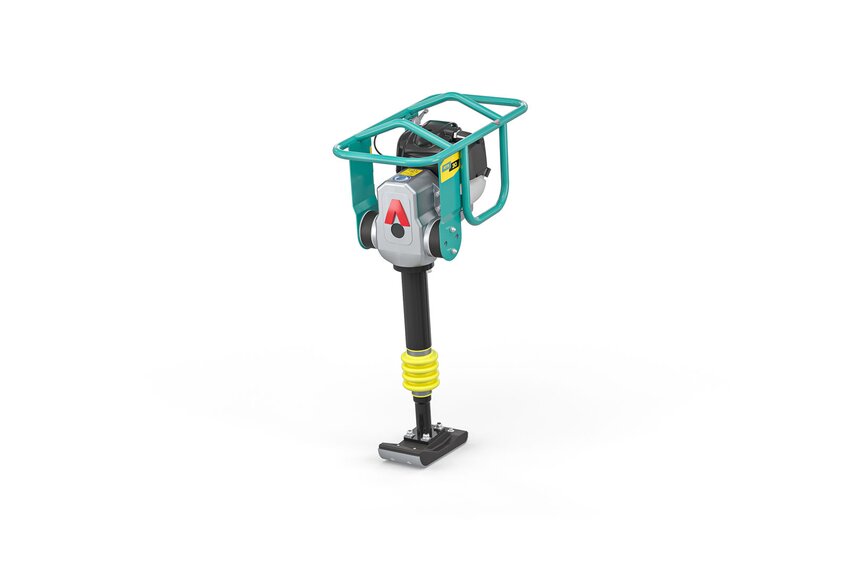

ATR 30 | © www.ammann.com

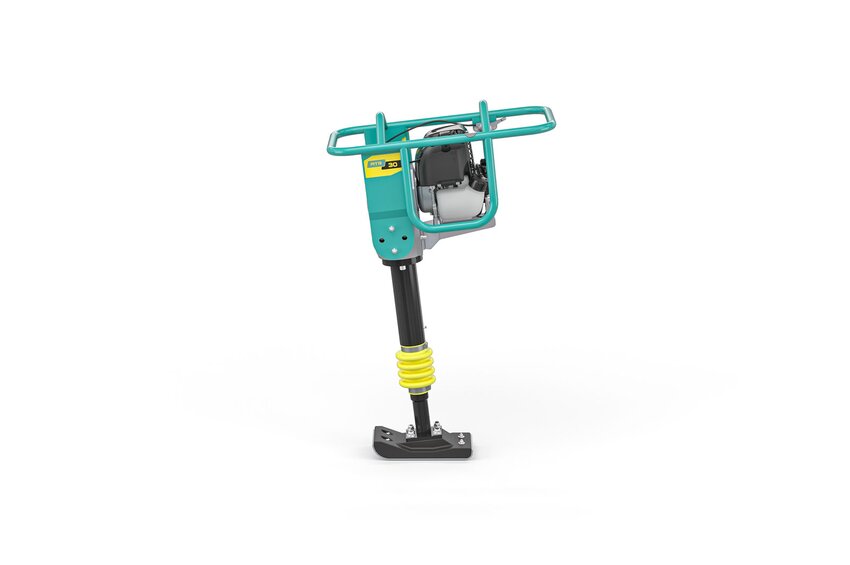

ATR 30 | © www.ammann.com

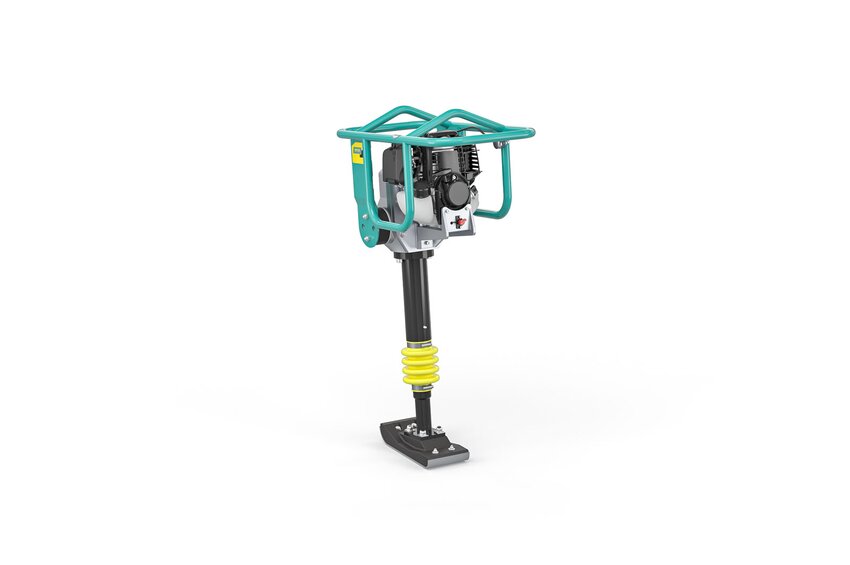

ATR 30 | © www.ammann.com

Weights & Dimensions

  • Machine weight: 28 / 29 kg
  • Foot lenght: 260 mm
  • Foot width: 80 / 130 mm
  • Handle lenght: 600 mm
  • Machine height: 950 mm
  • Handle width: 350 mm

Engine

  • Engine: Honda GX 35
  • Fuel: Petrol
  • Engine Output: 1.1 kW (1.5 HP)
  • at RPM: 5000

Compaction Forces

  • Percussion rate: 13.3 Hz
  • Stroke height: 45 mm
  • Centrifugal force: 2 kN
  • Surface capacity: 94 m²/h
  • max. compaction performance*: 30 cm

Miscellaneous

  • Fuel tank capacity: 0,63 l
  • Travel speed: 12 m/min
  • Optional foot sizes width: N/A

* depending on ground conditions
