Dimensions

• Machine length: 2140 mm
• Wheelbase: 1440 mm
• Machine height: 2400 mm
• Machine height (folder rops): 1725 mm
• Drum width: 820 mm
• Working width with offset: 868 mm
• Machine length (folded rops): 2330 mm
• Ground clearance: 230 mm

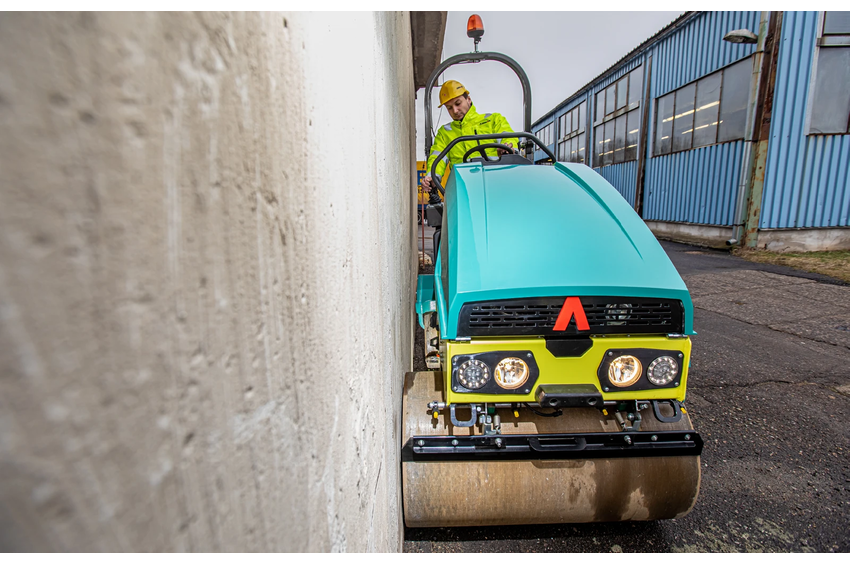

• Side clearance: 370 mm
• Drum diameter: 580 mm
• Drum shell thickness: 13 mm
• Machine width (total): 865 mm

Weight & operating characteristics

• Operating weight CECE: 1460 kg
• Operating weight max.: 1610 kg
• Stat. lin. load of front drum: 8.2 kg/cm
• Stat. lin. load of rear drum: 9.6 kg/cm
• Turning radius inside: 2100 mm
• Steering / oscillating angle: 30/6 ±°
• Drum offset: 48 mm

Engine

• Manufacturer: Kubota D1105
• Emission class: EU Stage V, U.S. EPA Tier 4 Final
• Power output ISO 3046: 15.6 kW (21.2 HP)
• Cylinder / ltr.: 3 cyl / 1123 No./ccm
• 1. / 2. Working speed: 2400 / 2600 rpm
• Travel speed: 8.1 km/h
• Gradeability with / without vibr.: 30 % / 35 %

Compaction Forces

• Amplitude I: 0.5 mm
• Amplitude II: 0.5 mm
• Frequency I: 60 Hz
• Frequency II: 70 Hz
• Centrifugal force I: 19 kN
• Centrifugal force II: 22 kN

Miscellaneous

• Battery / capacity: 12/77 V/Ah
• Water tank: 110 l
• Hydraulic tank: 28.5 l
• Diesel fuel tank: 24 l
