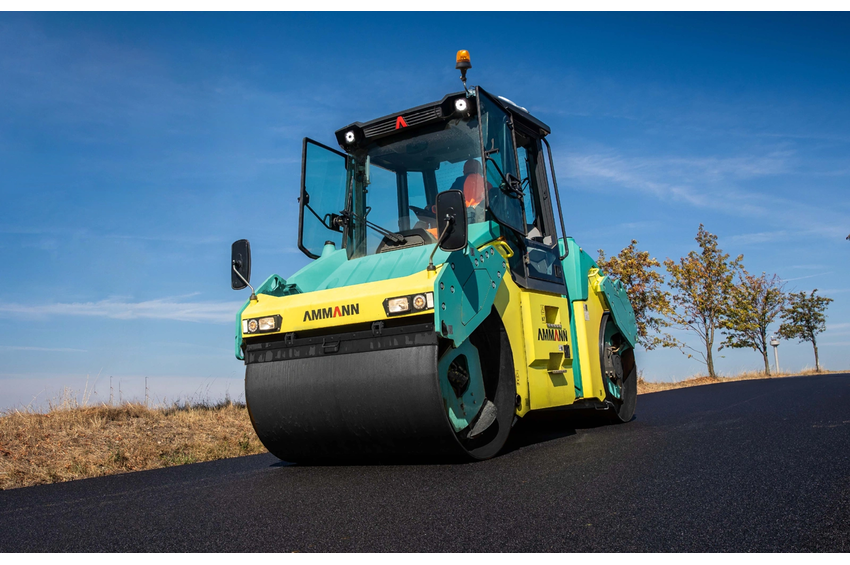

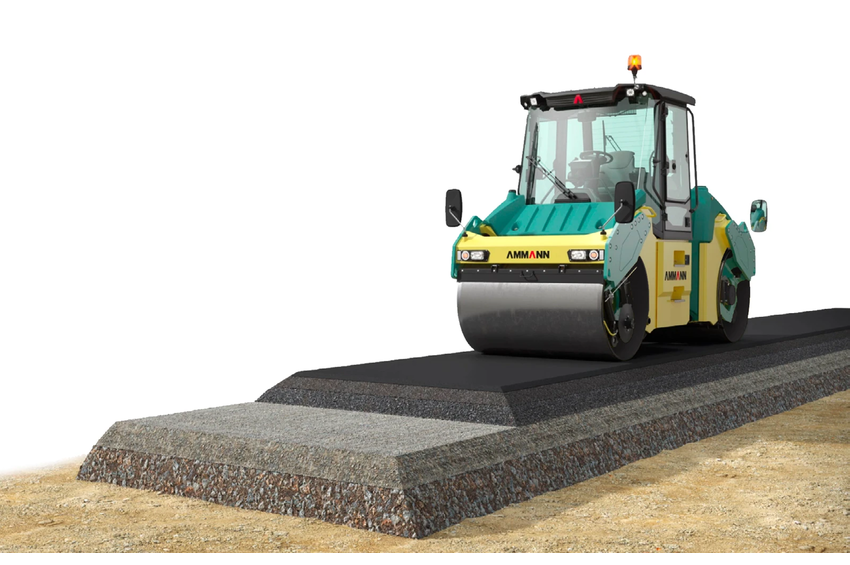

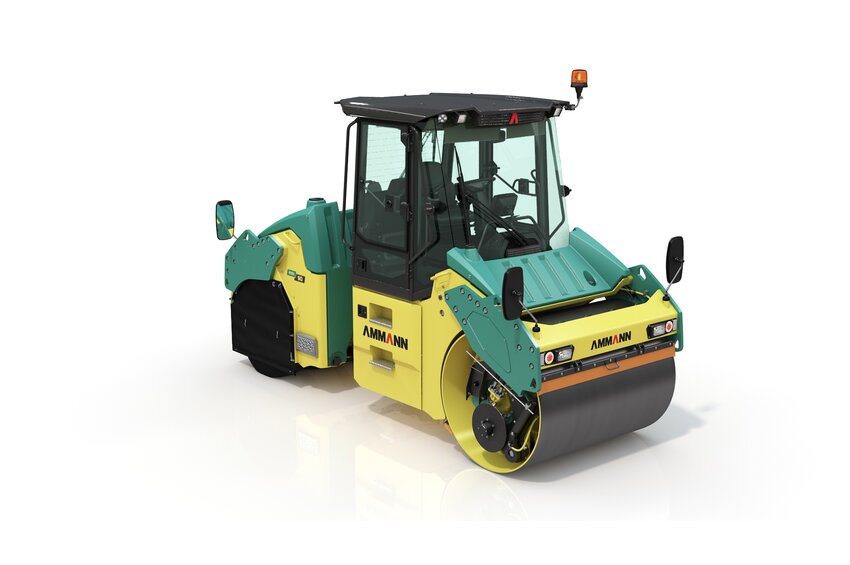

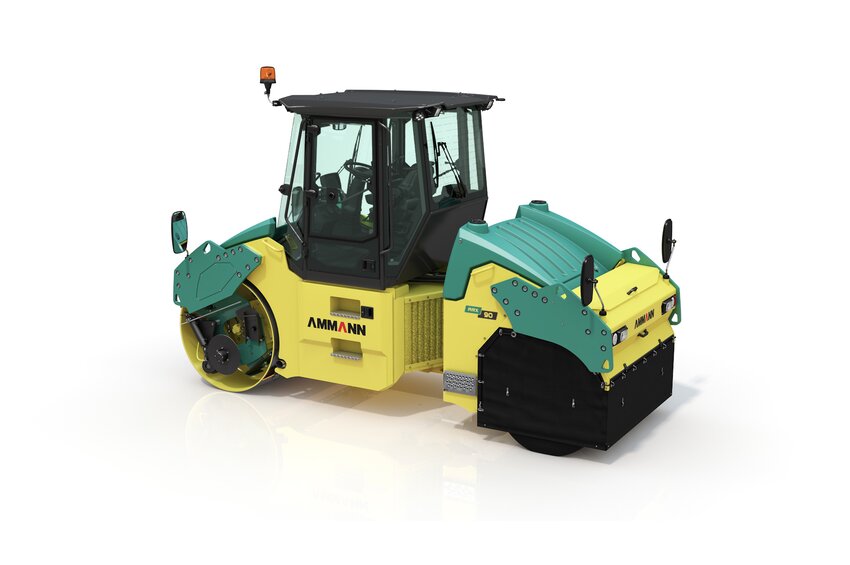

Dimensions

• Machine length: 4720 mm
• Wheelbase: 3500 mm
• Machine height: 3000 mm
• Drum width: 1680 mm
• Machine width: 1800 mm
• Side clearance: 780 mm
• Ground clearance: 300 mm
• Drum diameter: 1220 mm
• Drum shell thickness: 19 mm

Weight & operating characteristics

• Operating weight: 9720 kg
• Operating weight max.: 11 040 kg
• Stat. lin. load of front drum: 28.5 kg/cm
• Max. transport speed: 10.5 km/h
• Gradeability with/without vibration: 25 % / 30 %
• Turning radius inner (edge): 5470 mm
• Drum offset: 170 mm

Engine

• Manufacturer: Deutz TCD3.6 L4
• Power output ISO 14396: 74.4 kW (100 HP)
• Max. torque: 410/1600 Nm/rpm
• Emission class: EU Stage V / U.S. EPA Tier 4 Final
• Exhaust gas after-treatment: EGR+DOC+DPF+SCR

Compaction Forces

• Frequency I: 38–42 Hz
• Frequency II: 45–54 Hz
• Amplitude I: 0.7 mm
• Amplitude II: 0.34 mm
• Centrifugal force I: 47–68kN
• Centrifugal force II: 69–84kN

Miscellaneous

• Brakes operating: Hydrostatic
• Brakes parking: Mechanical multiple-disc
• Brakes emergency: Mechanical multiple-disc
• Fuel tank capacity: 220 l
• Water tank capacity: 840 l
• Voltage: 24 V
• Tire size: 11,00×20″16PR
• Voltage: 24 V
