Dimensions

• Machine length: 2500 mm
• Wheelbase: 1755 mm
• Machine height: 2550 mm
• Machine height (folded rops): 1935 mm
• Drum width: 1200 mm
• Machine length (folded rops): 2585 mm
• Ground clearance: 280 mm
• Side clearance: 490 mm
• Drum diameter: 695 / 635 mm
• Drum shell thickness: 13 mm
• Machine width (total): 1295 mm

Weight and operating characteristics

• Operating weight CECE: 2300 kg
• Operating weight max.: 2500 kg
• Stat. lin. load of front drum: 9.8 kg/cm
• Turning radius inside: 2540 mm
• Steering / oscillating angle: 30/6.5 ±°

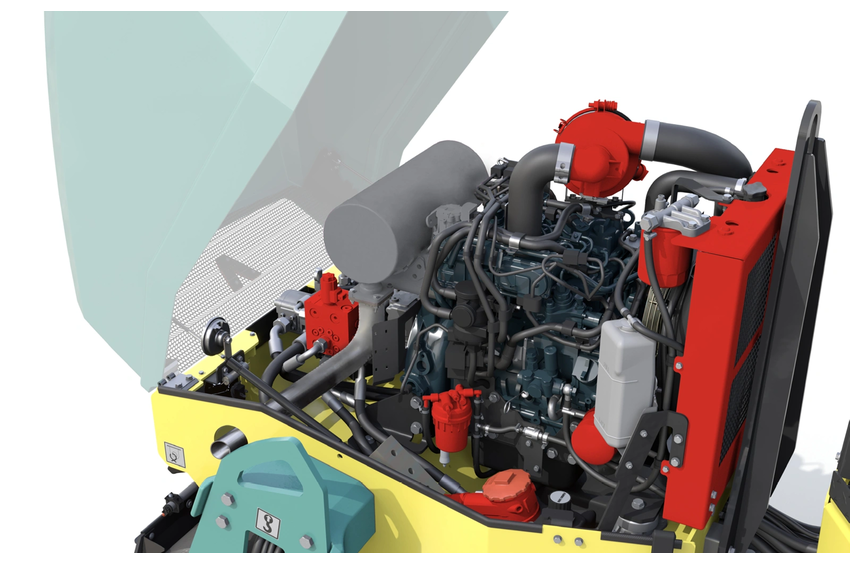

Engine

• Engine type: Kubota D1703-M-DI | Yanmar 3TNV88F-EPAMM
• Emmission class: EU Stage V / U.S. EPA Tier 4 Final
• Power output ISO 3046: 18.5 kW (24.8 HP)
• Cylinder / ltr.: 3 cyl / 1826 cm³
• Nominal speed: 2100 / 2400 rpm
• Travel speed: 10 km/h
• Gradeability with / without vibr.: 25% / 30%

Compaction forces

• Amplitude I: 0.5 mm
• Amplitude II: 0.5 mm
• Frequency I: 58 Hz
• Frequency II: 66 Hz
• Centrifugal force I: 36.4 kN
• Centrifugal force II: 42.8 kN

Miscellaneous

• Battery / capacity: 12/77 V/Ah
• Water tank: 190 l
• Anti-adhesive tank: 12 l
• Hydraulic tank: 28.5 l
• Diesel fuel tank: 35 l
• Wheel load: 280 kg

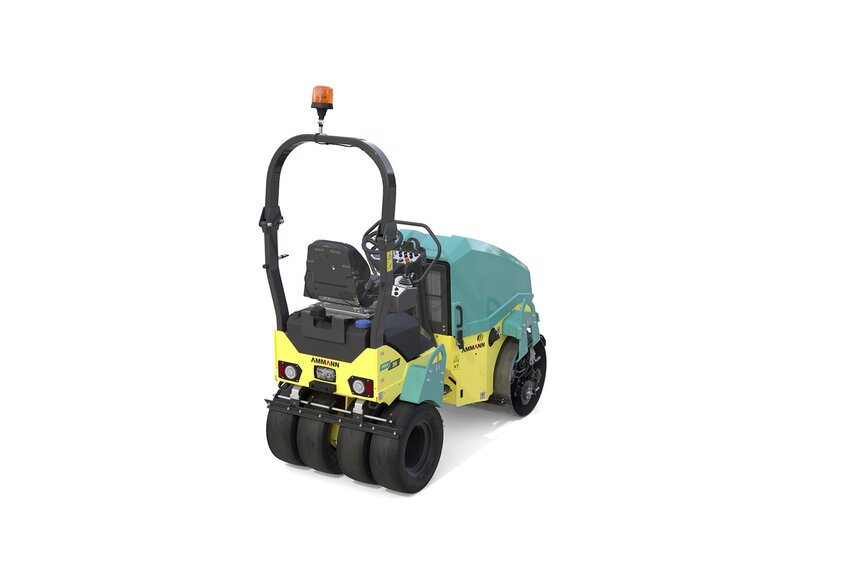

• Number of wheels: 4
• Tire size: 9.5 / 65-15
