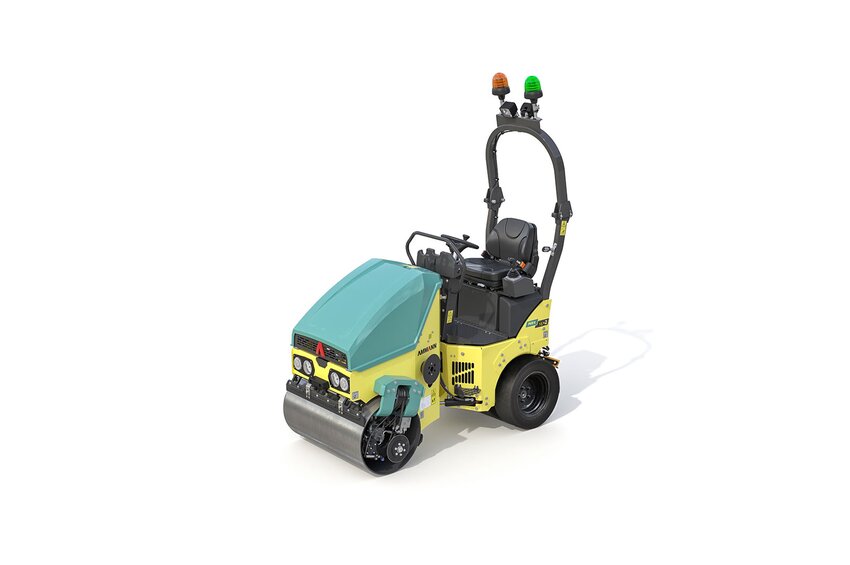

ARX 16-2C
ARX 16-2C | © www.ammann.com
ARX 16-2C | © www.ammann.com

Dimensions

  • Machine length: 2140 mm
  • Wheelbase: 1475 mm
  • Machine height: 2400 mm
  • Machine height (folder rops): 1725 mm
  • Drum width: 900 mm
  • Tire-axle width: 890 mm
  • Machine length (folded rops): 2330 mm
  • Ground clearance: 230 mm
  • Side clearance: 370 mm
  • Drum diameter: 580 mm
  • Drum shell thickness: 13 mm
  • Machine width (total): 947 mm

Weight & operating characteristics

  • Operating weight CECE: 1450 kg
  • Operating weight max.: 1600 kg
  • Stat. lin. load of front drum: 8 kg/cm
  • Turning radius inside: 2140 mm
  • Steering / oscillating angle: 30/6 ±°

Engine

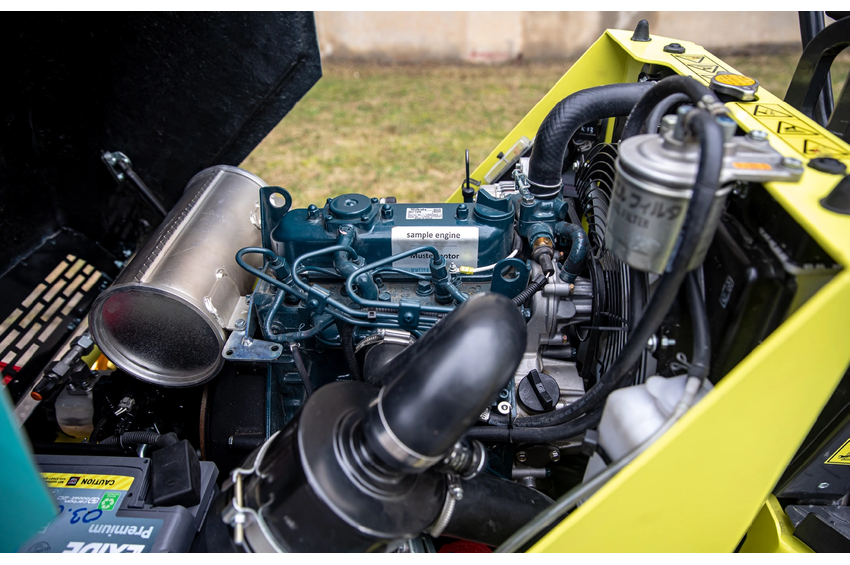

  • Manufacturer: Kubota D1105
  • Emission class: EU Stage V, U.S. EPA Tier 4 Final
  • Power output ISO 3046: 15.6 kW (21.2 HP)
  • Cylinder / ltr.: 3 cyl / 1123 No./ccm
  • 1. / 2. Working speed: 2400 / 2600 rpm
  • Travel speed: 7.4 km/h
  • Gradeability with / without vibr.: 30 % / 35 %

Compaction Forces

  • Amplitude I: 0.5 mm
  • Amplitude II: 0.5 mm
  • Frequency I: 60 Hz
  • Frequency II: 70 Hz
  • Centrifugal force I: 20 kN
  • Centrifugal force II: 23 kN

Miscellaneous

  • Battery / capacity: 12/77 V/Ah
  • Water tank: 110 l
  • Hydraulic tank: 28.5 l
  • Diesel fuel tank: 24 l
  • Wheel load: 183 kg
  • Number of wheels: 4
  • Tire size: 8/60-15
