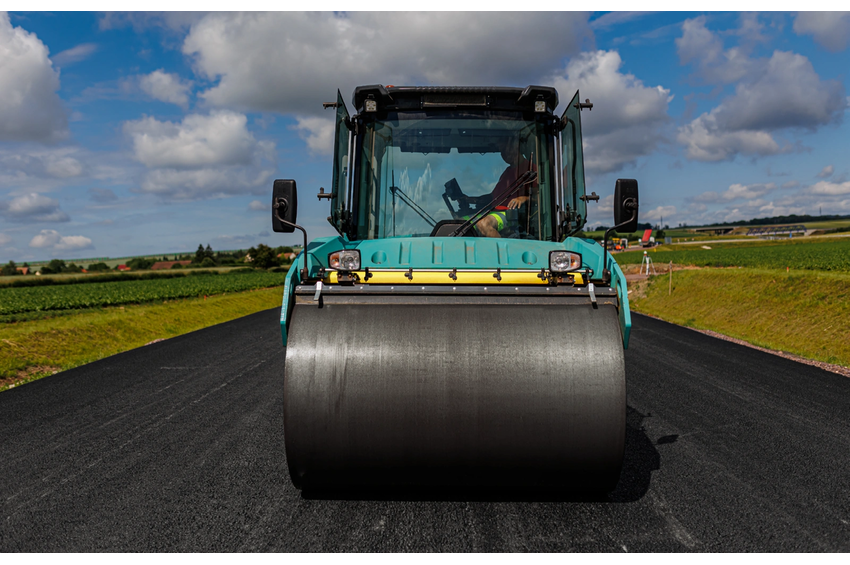

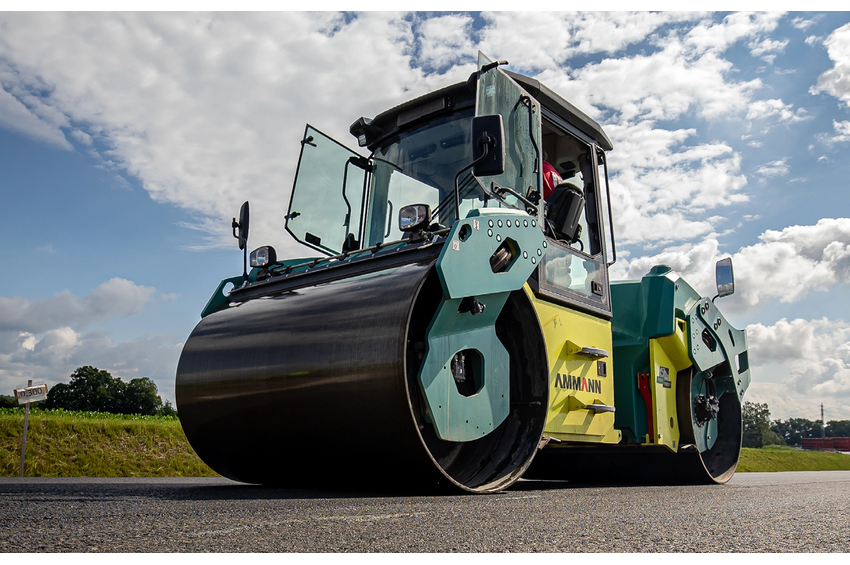

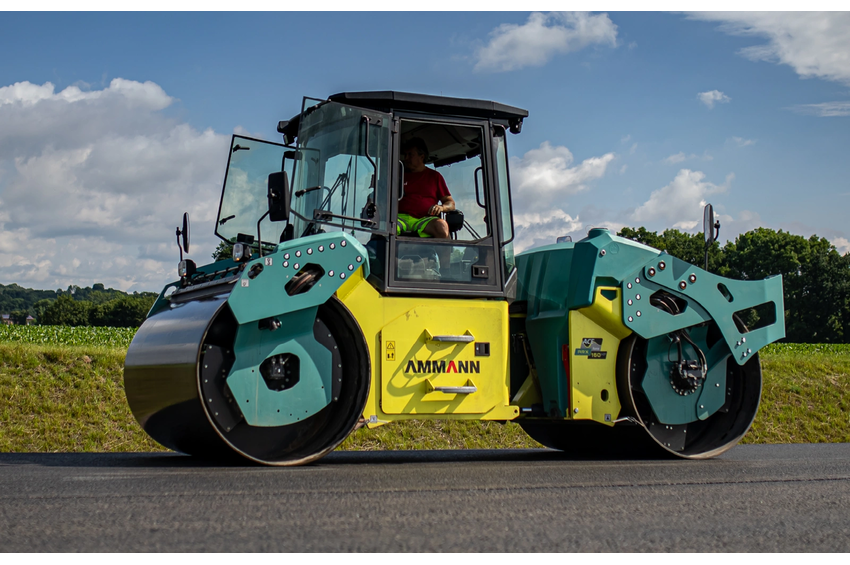

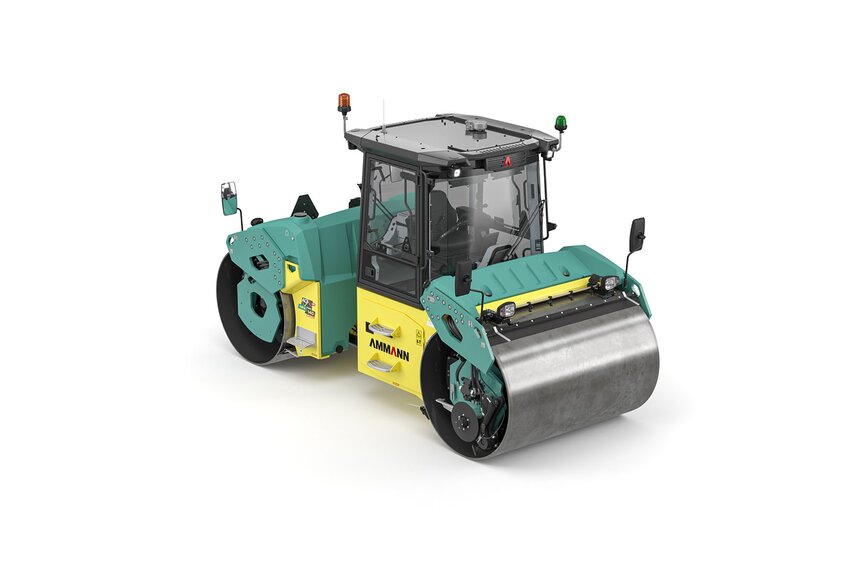

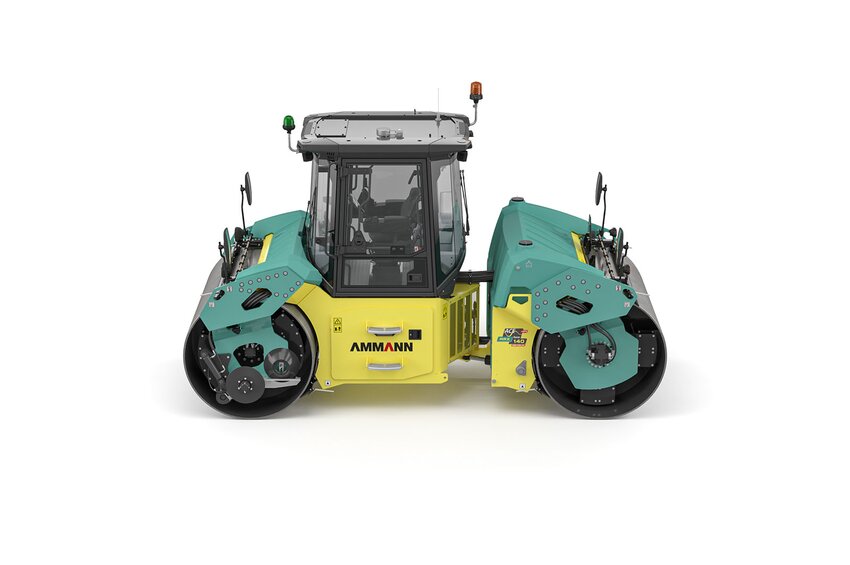

ARX 140 | © www.ammann.com
ARX 140 | © www.ammann.com

Dimensions

  • Machine length: 5150 mm
  • Wheelbase: 3750 mm
  • Machine height: 3000 mm
  • Drum width: 2130 mm
  • Machine width: 2260 mm
  • Curb clearance: 990 mm
  • Ground clearance: 325 mm
  • Drum diameter: 1400 mm
  • Drum shell thickness: 19 mm

Weight & operating characteristics ARX 140 & ARX 140 HF

  • Operating weight CECE: 13 300 kg
  • Stat. lin. load: 62,4 kg
  • Travel speed: 12 km/h
  • Oscillation angle: ± 6°
  • Steering angle: ± 33°
  • Turning radius inner (edge): 5225 mm
  • Drum offset: 170 mm

Engine

  • Manufacturer: Perkins 904J
  • Power output ISO 14396: 100 kW (134 HP)
  • Max. torque: 410/1600 Nm/rpm
  • Emission class: EU Stage V / U.S. EPA Tier 4 Final
  • Exhaust gas after-treatment: EGR+DOC+DPF+SCR

Compaction Forces ARX 140

  • Frequency I: 35-40 Hz
  • Frequency II: 40-50 Hz
  • Amplitude I: 0,82 mm
  • Amplitude II: 0,37 mm
  • Centrifugal force I: 104-136 kN
  • Centrifugal force II: 61-96 kN

Compaction Forces ARX 140 HF

  • Frequency I: 38-48 Hz
  • Frequency II: 52-62 Hz
  • Amplitude I: 0,58 mm
  • Amplitude II: 0,24 mm
  • Centrifugal force I: 86-137 kN
  • Centrifugal force II: 67-95 kN

Miscellaneous

  • Fuel tank capacity: 180 l
  • Water tank capacity: 1010 l
  • Voltage: 12 V

Maximum recommended compacted lift thickness at optimal working conditions

  • Rockfill: N/A
  • Sand / gravel: 400 mm
  • Mixed soils: 350 mm
  • Silt: N/A
  • Clay: N/A
  • Stabilisation: 250 mm
  • Asphalt: 40-160 mm
