ART 240 | © www.ammann.com
ART 240 | © www.ammann.com

Dimensions

  • Machine length: 5030 mm
  • Machine length (Thermal aprons): 5780 mm
  • Wheelbase: 3780 mm
  • Machine height: 3130 mm
  • Machine height (removed rops): 2380 mm
  • Working width: 1986 mm
  • Machine width: 2100 mm
  • Machine width (Thermal aprons): 2310 mm

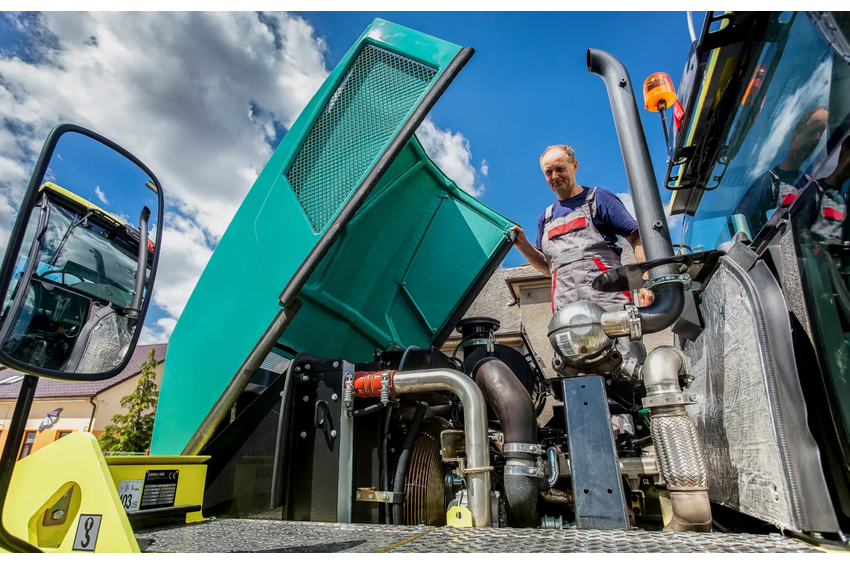

Engine:

  • Type: Deutz TCD3.6
  • Power according to iso 14396: 74.4 kw (100 hp)
  • Maximum torque: 410 / 1600 nm/rpm
  • Emission stage: EU Stage V / U.S. EPA Tier 4 Final
  • Exhaust gas after-treatment: EGR+DOC+DPF+SCR
  • Number of cylinders: 4
  • Cooling system of engine: liquid

Weight & operating characteristics

  • Operating weight CECE: 9980 kg

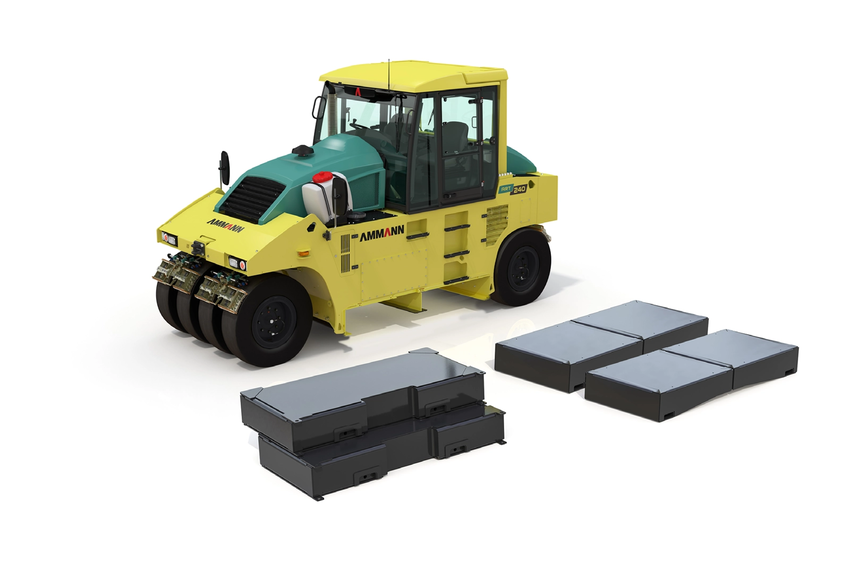

  • Operating weight max.: 24 000 kg
  • Max. transport speed: 18 km/h
  • Climbing ability: 25%
  • Turning radius inner (edge) left: 6200 mm
  • Turning radius inner (edge) right: 6100 mm
  • Number of front wheels: 4
  • Number of rear wheels: 4
  • Size of tyres: 11 × 20”

Miscellaneous

  • Brakes operating: Drum
  • Parking brakes: Mechanical disc
  • Emergency brakes: Mechanical disc
  • Type of drive: Hydrodynamic
  • Number of driven wheels: 4
  • Oscillation angle: 3°
  • Angle of steering: 32°
  • Type of watering: Pressure
  • Fuel tank capacity: 250 l
  • Water for tyre watering: 390 l
  • Voltage: 24 V

Maximum recommended compacted lift thickness at optimal working conditions

  • Rockfill: –
  • Sand / gravel: 250 mm
  • Mixed soils: 200 mm
  • Silt: 200 mm
  • Clay: 150 mm
  • Stabilisation: 200 mm
  • Asphalt: 120 mm
