Weight & dimensions
- Machine weight: 440 kg
- With extension plates 75 mm (3.0 in): 462 kg
- With extension plates 150 mm (5.9 in): 473 kg
- Base plate length: 450 mm
- Machine length: 898 mm
- With handle: 1453 mm
- Machine height: 850 mm
- Handle height (work): 1000 mm
- Handle height (transport): 1285 mm
- Machine width: 450 mm
Engine

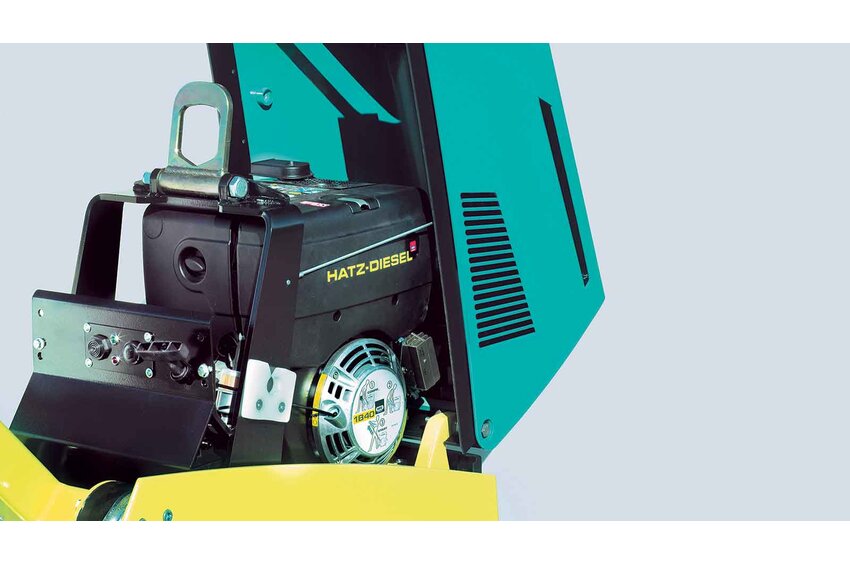

- Engine: Hatz 1B40
- Fuel: Diesel
- Engine output: 6.6 kW (8.8 HP)
- AT RPM: 2900
- Fuel consumption: 1.6 l/h
Compaction forces
- Max. vibration frequency: 65 Hz
- Max. centrifugal force: 59 kN
- Working surface: 945 m²/h
- With extension plates 3.0 in (75 mm): 1260 m²/h
- With extension plates 5.9 in (150 mm): 1575 m²/h
Miscellaneous
- Speed: 35 m/min
- Fuel tank: 5 l
- Gradeability: 30 %
- Max. incline on all sides: 25 °
