Weight & dimensions
Petrol | Diesel | |
---|---|---|
Machine weight | 100 kg | 118 kg |
Machine weight (with options) | 109 kg | 130 kg |
Base plate length | 254 mm | 254 mm |
Machine length | 600 mm | 600 mm |
With handle | 1140 mm | 1140 mm |
Machine height | 625 mm | 725 mm |
Handle height (work) | 1000 mm | 1000 mm |
Handle height (transport) | 1180 mm | 1180 mm |
Machine width | 400 mm | 400 mm |
Compaction forces
Petrol | Diesel | |
---|---|---|
Max. vibration frequency | 98 Hz | 98 Hz |
Max. centrifugal force | 23 kN | 23 kN |
Working surface | 528 m²/h | 504 m²/h |
Spec. surface pressure | 22,6 N/cm² | 22,6 N/cm² |
Amplitude | 0.9 mm | 0.9 mm |
Miscellaneous
Petrol | Diesel | |
---|---|---|
Hand-arm vibrations | < 2.5m/sec² | < 2.5m/sec² |
Speed | 22 m/min | 21 m/min |
Fuel tank | 3.1 l | 3.0 l |
Gradeability | 35% | 35% |
Max. incline to all sides | 20° | 30° |
Water tank | – | 7.6 l |
Engine
Petrol | Diesel | |
---|---|---|
Hand-arm vibrations | Honda GX 160 | Hatz 1B20 |
Speed | Petrol | Diesel |
Fuel tank | 3.6 kW (4.8 HP) / | 3.1 kW (4.2 HP) / |
Gradeability | 3600 | 3600 |
Max. incline to all sides | 1.4 l/h | 0.9 l/h |
Back to overview
Vibratory plates
Model

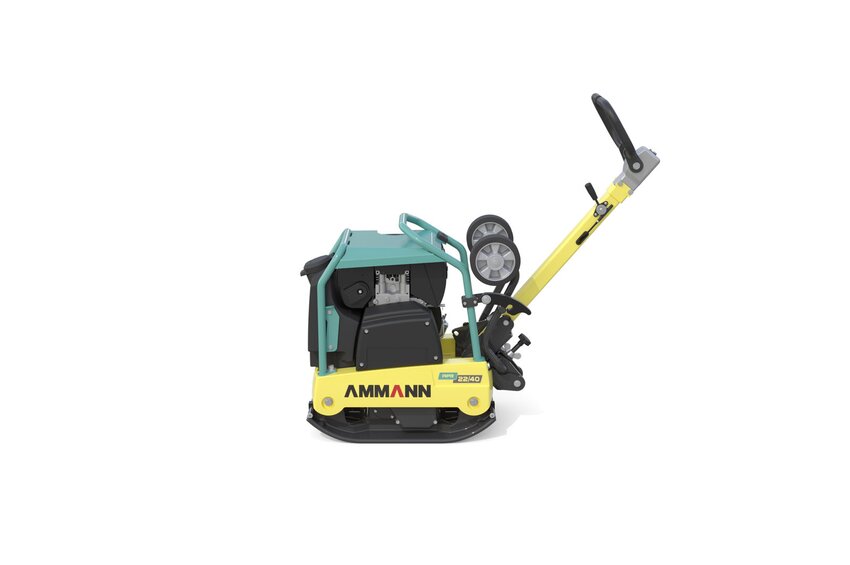

APR 22/40
