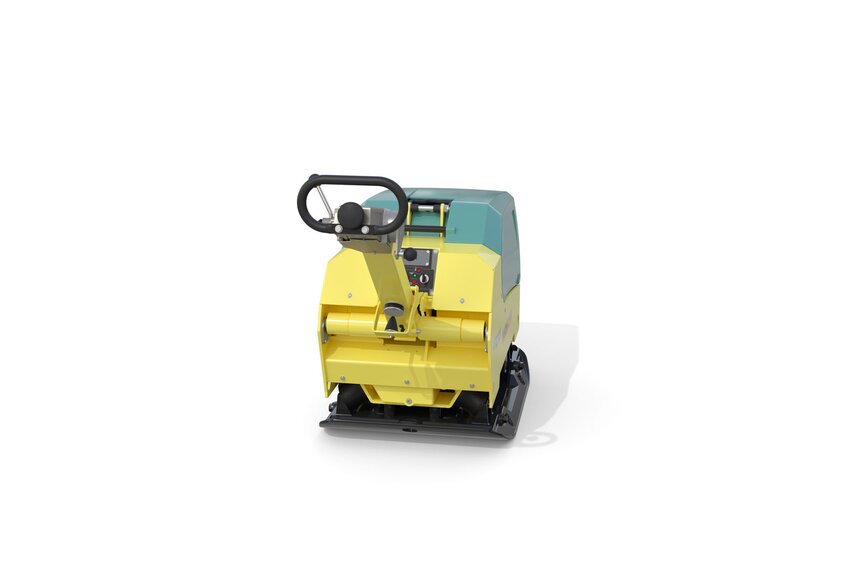

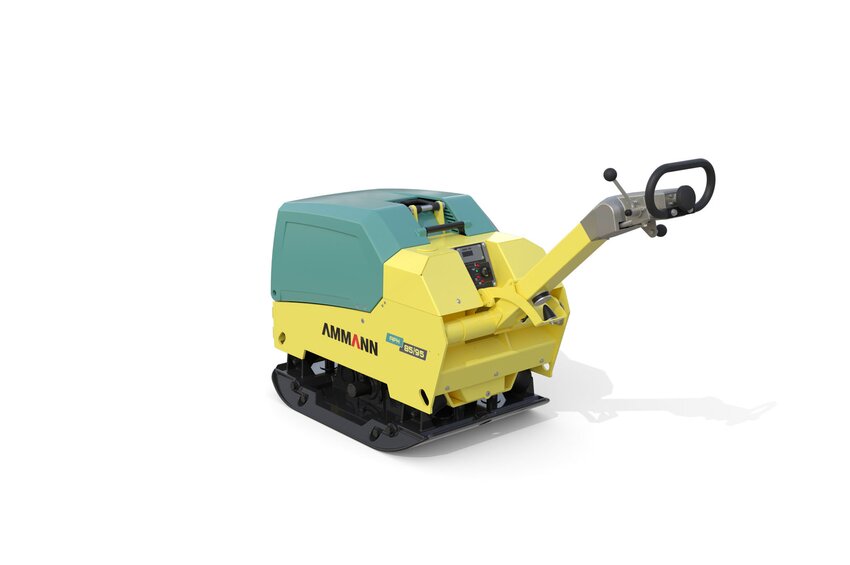

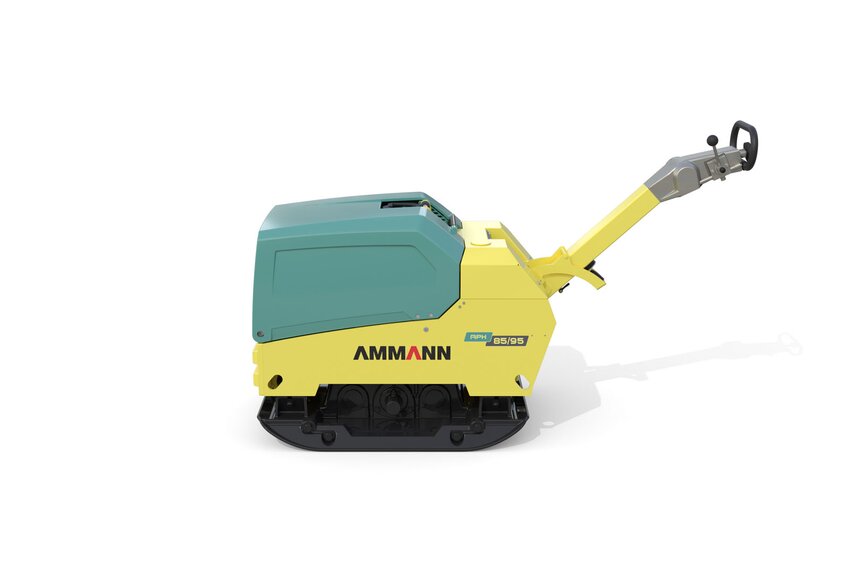

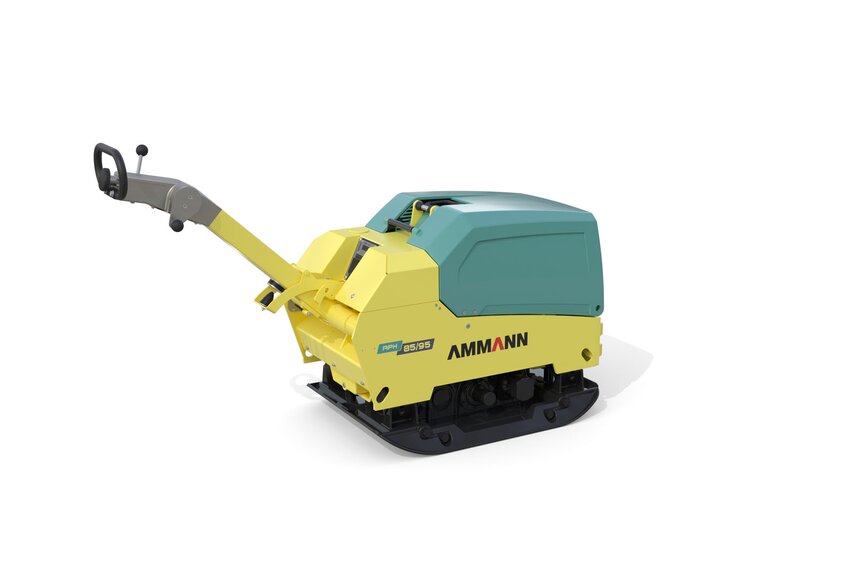

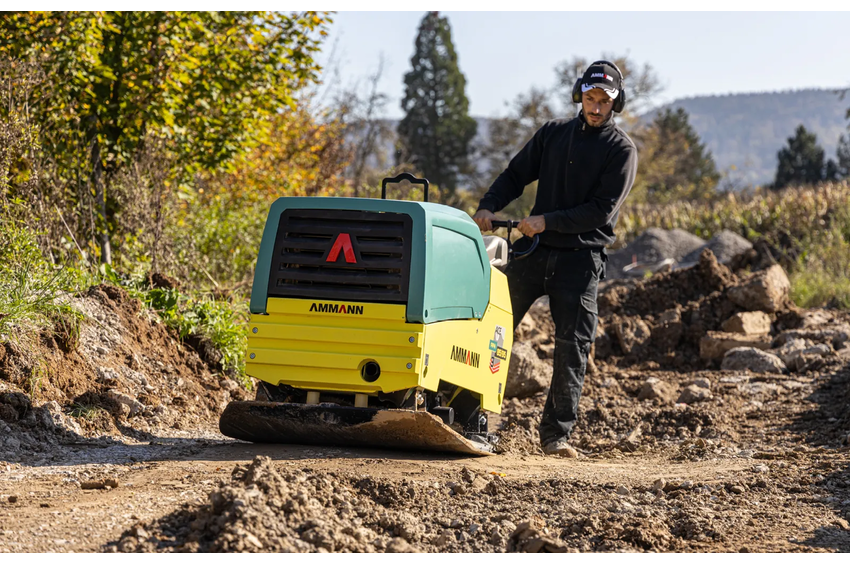

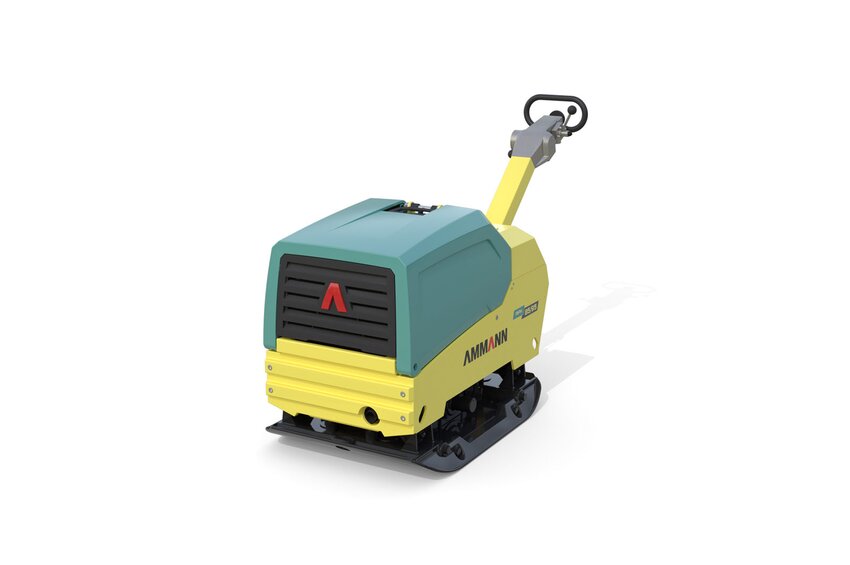

APH 85/95
APH 85/95
APH 85/95
APH 85/95
APH 85/95

Weight & dimensions

  • Machine weight basic unit: 760 kg
  • Max. operating weight: 813 kg
  • Base plate length: 520 mm
  • Machine length: 1070 mm
  • With handle: 1965 mm
  • Machine height: 910 mm
  • Handle height (work): 1000 mm
  • Handle height (transport): 1500 mm
  • Machine width: 650/800/950 mm

Engine

  • Engine: Kubota D902
  • Fuel: Diesel
  • Engine output: 18 HP / 13.4 kW
  • at RPM: 2600 rpm
  • Fuel consumption: 3.3 l/h

Compaction forces

  • Max. vibration frequency: 52 Hz
  • Max. centrifugal force: 85 kN
  • Working surface basic unit: 1767 m²/h
  • Max surface pressure: 25,1 N/cm²
  • Amplitude: 4.1 mm

Miscellaneous

  • Operating speed: 31 m/min
  • Tank capacity: 16.5 l
  • Gradeability: 36%
  • Max. incline to all sides: 30°
