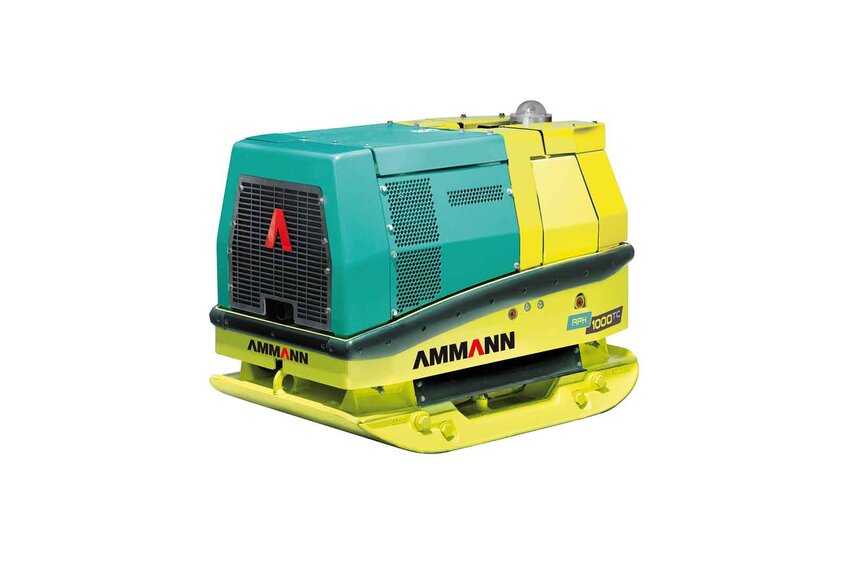

APH 1000 TC

Weights & dimensions

  • Machine weight basic unit:  715 kg
  • with extension plates 75 mm:  747 kg
  • Base plate length:  520 mm
  • Machine length:  1090 mm
  • Machine heigth:  845 mm
  • Machine height (w, transport hook):  910 mm
  • Machine width:  696 mm
  • Base plate width:  650 mm
  • with extensions:  800 mm

Engine

  • Engine:  Hatz 1D90V
  • Fuel:  Diesel
  • Engine output:  14,8 HP / 10,9  kW
  • at RPM:  3000
  • Fuel consumption:  2,5 l/h
  • Compaction forces:
  • Max. vibration frequency:  46 Hz
  • Max. centrifugal force:  63 kN
  • Working surface basic unit:  1090 m2/h
  • with extensions:  1350 m2/h
  • Max. compaction depth *:  90 cm

Miscellaneous

  • Speed:  28 m/min
  • Tank capacity:  10 l
  • Gradeability:  35%
  • Max. incline to all sides:  25°

 * depending on ground conditions
