Dimensions & weights
Honda / Vanguard / Rato | Hatz | |
---|---|---|
Machine weight | 88 kg | 106 kg |
Machine weight (incl. optional sprinkler & wheels) | 97 kg | 115 kg |
Machine length | 700 mm | 700 mm |
Machine length with handle | 1020 mm | 1020 mm |
Base plate length | 559 mm | 559 mm |
Ground contact length | 352 mm | 352 mm |
Machine height | 667 mm | 667 mm |
With handle (work) | 976 mm | 976 mm |
With handle (transport) | 736/*960 mm | 736 mm |
Machine width | 500 mm | 500 mm |
*Vanguard & Rato
Compaction forces
Honda / Vanguard / Rato | Hatz | |
---|---|---|
Max. vibration frequency | 90 Hz | 90 Hz |
Max. centrifugal force | 20 kN | 20 kN |
Working surface | 930 m²/h | 930 m²/h |
Spec. surface pressure | 11.4 N/cm² | 11.4 N/cm² |
Engine
Fuel | Engine Output at RPM | |
---|---|---|
HONDA GX 160 | Petrol | 3.4 kW (4.6 HP) @3250 |
VANGUARD 160 | Petrol | 3.5 kW (4.7 HP) @3250 |
RATO R180 | Petrol | 3.8 kW (5.1 HP) @3250 |
HATZ 1B20 | Diesel | 3.2 kW (4.3 HP) @3250 |
Miscellaneous
Honda / Vanguard / Rato | Hatz | |
---|---|---|
Hand-arm vibration on handle | 3.1 m/s² | <2.5 m/s² |
Max. gradeability | 0–31 m/min | 0–33 m/min |
Max. gradeability | 30 % | 30 % |
Max. incline | 20° | 20° |
Options
- Rubber mat: X
- Transport wheels: X
- Water sprinkler system: 12 l
- Hour meter: X
Back to overview
Vibratory plates
Model

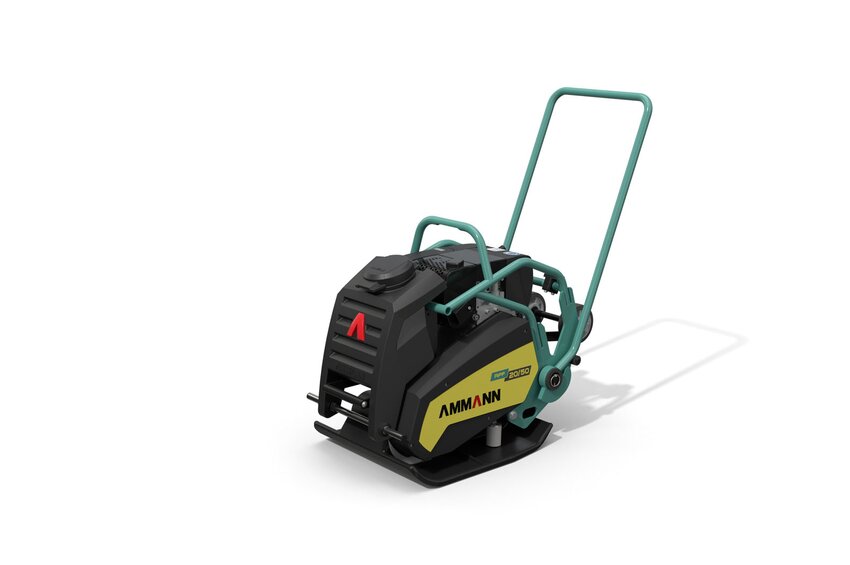

APF 20/50
