Dimensions & weights
- Machine weight: 80/(1) 84 kg
- Machine weight (incl. optional sprinkler & wheels): 89/(1) 93 kg
- Machine length: 700 mm
- Machine lenght with handle: 1020 mm
- Base plate length: 559 mm
- Ground contact length: 352 mm
- Machine height: 667 mm
- With handle (work): 976 mm
- With handle (transport): (2)736 /(3)960 mm
- Machine width: 500 mm
(1)Vanguard & Rato
(2)Honda & Rato
(3)Vanguard
Compaction forces
- Max. vibration frequency: 100 Hz
- Max. centrifugal force: 15 kN
- Working surface: 648 m²/h
- Spec. surface pressure: 10.7 N/cm²
Engine
| Honda GX 120 | Vanguard 160 | Rato R180 | |
|---|---|---|---|
| Fuel | Petrol | Petrol | Petrol |
| Engine output | 2.6 kW (3.5 HP) | 3.7 kW (5 HP) | 3.8 kW (5.1 HP) |
| AT RPM | 3600 | 3600 | 3600 |
Miscellaneous
- Hand-arm vibration on handle: <2.5 m/s²
- Speed: 0–27 m/min
- Gradeability: 30 %
- Max. Incline to all sides: 20 °
Options
- Rubber mat: X
- Transport wheels: X
- Water sprinkler system: 12 l
Back to overview
Vibratory plates
Model

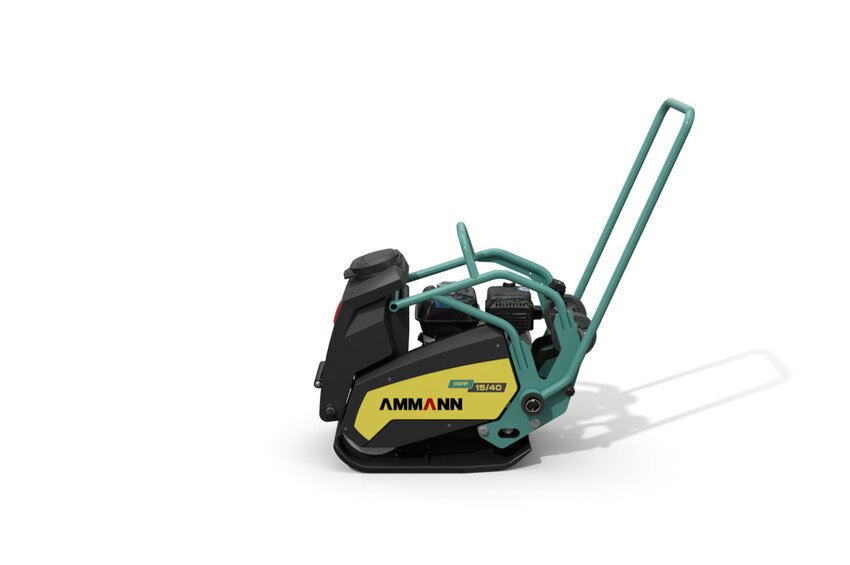

APF 15/40
