Dimensions & weights
- Machine weight: 54/(1) 55 kg
- Machine weight (incl. optional sprinkler & wheels): 57/(1) 58 kg
- Machine length: 655 mm
- Machine lenght with handle: 1130 mm
- Base plate length: 495 mm
- Ground contact length: 341 mm
- Machine height: 507 mm
- With handle (work): 932 mm
- With handle (transport): 1100 mm
- Machine width: 330 mm

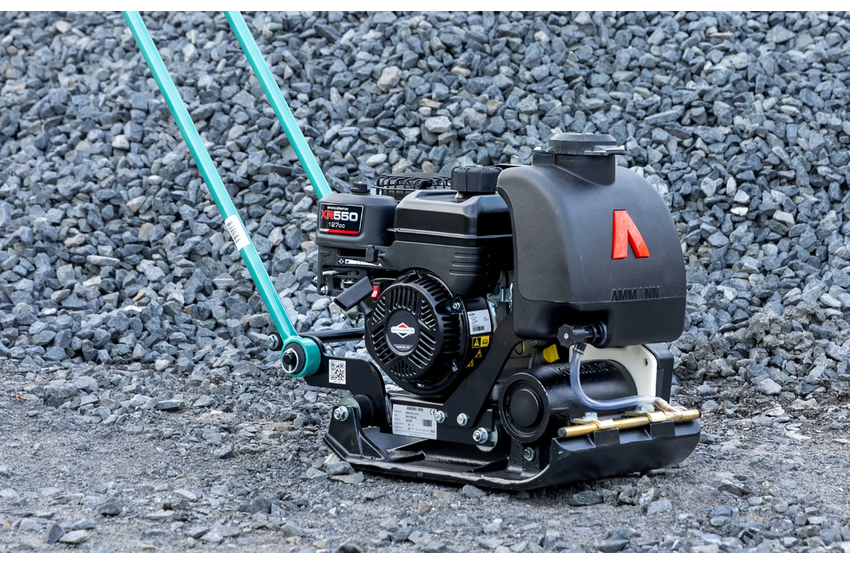

(1)B&S XR 550
Engine (B&S XR 550 & Honda GX 120)
- Fuel: Petrol
- Engine output: 2.6 kw (3.5 HP)
- At rpm: 3600
Compaction forces
- Max. vibration frequency: 100 Hz
- Max. centrifugal force: 10.5 kN
- Working surface: 435.6 m²/h
- Spec. surface pressure: 9.3 N/cm²
Miscellaneous
- Speed: 0–22 m/min
- Gradeability: 30 %
- Max. incline to all sides: 20 °
Back to overview
Vibratory plates

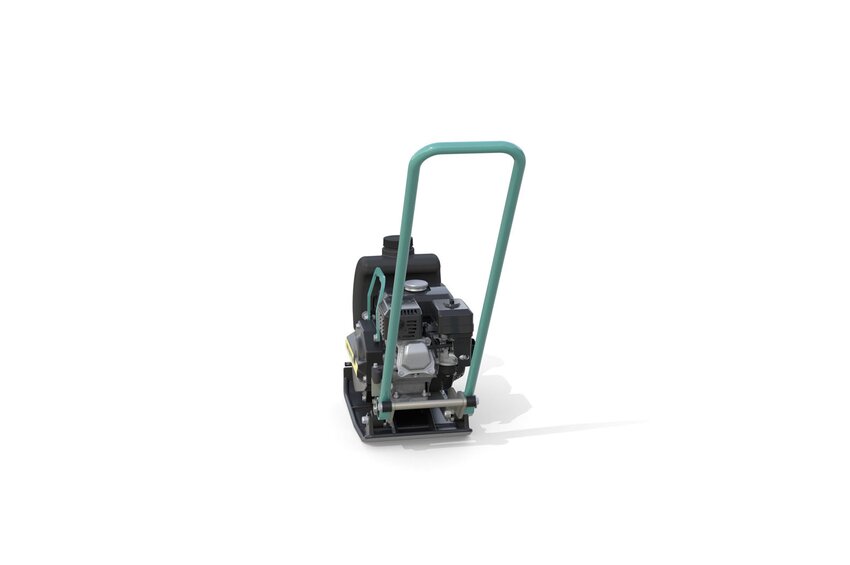

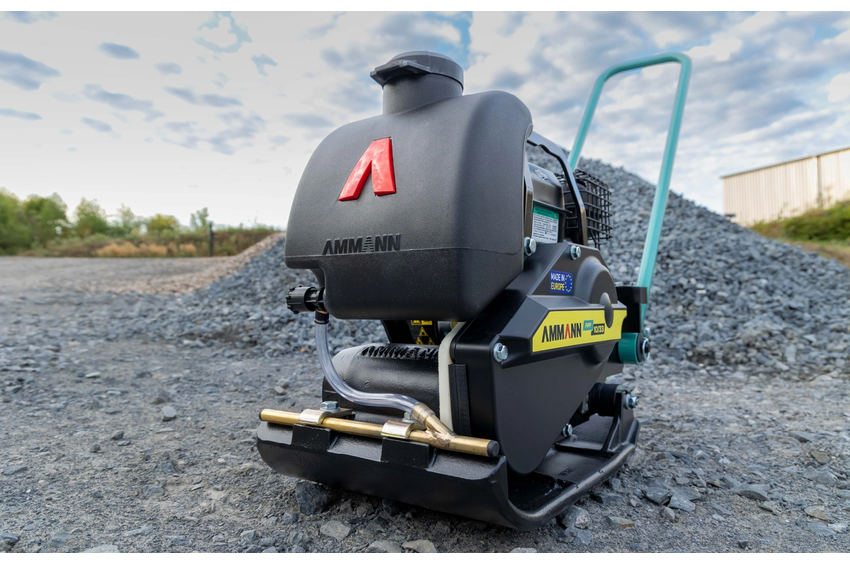

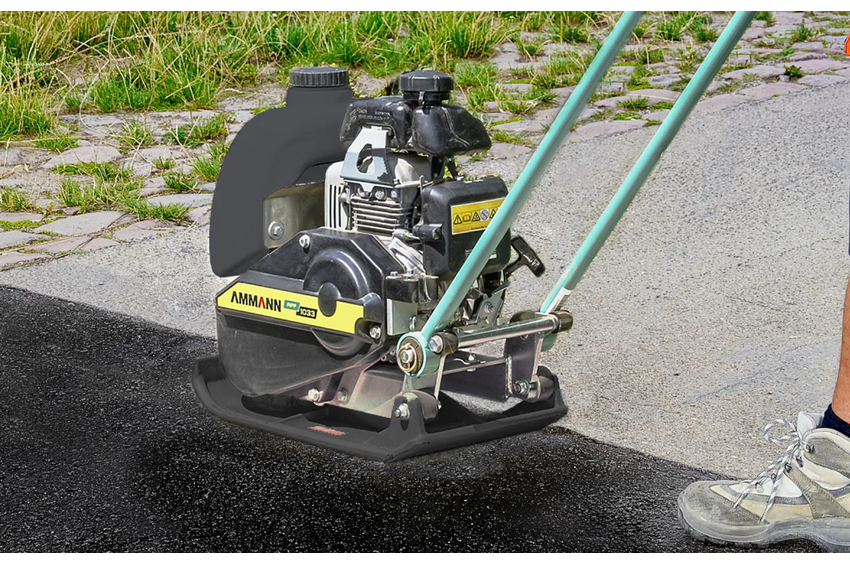

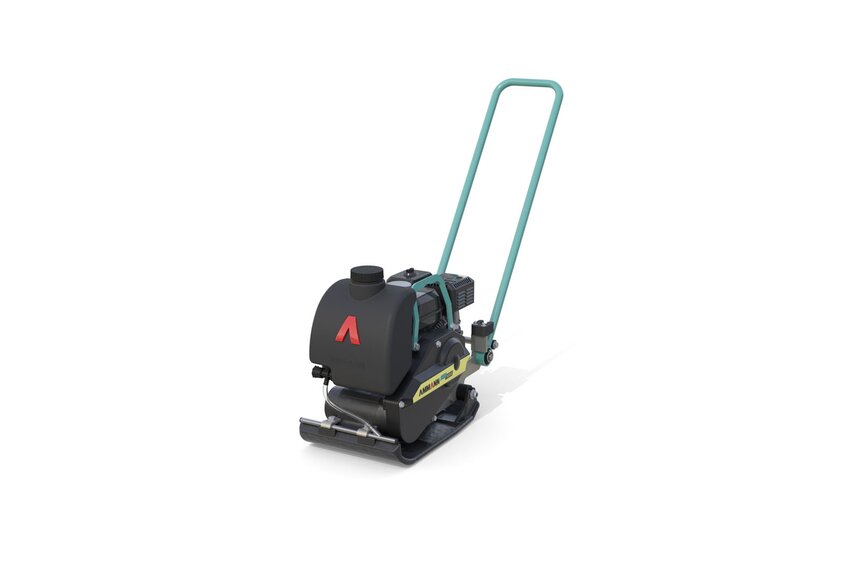

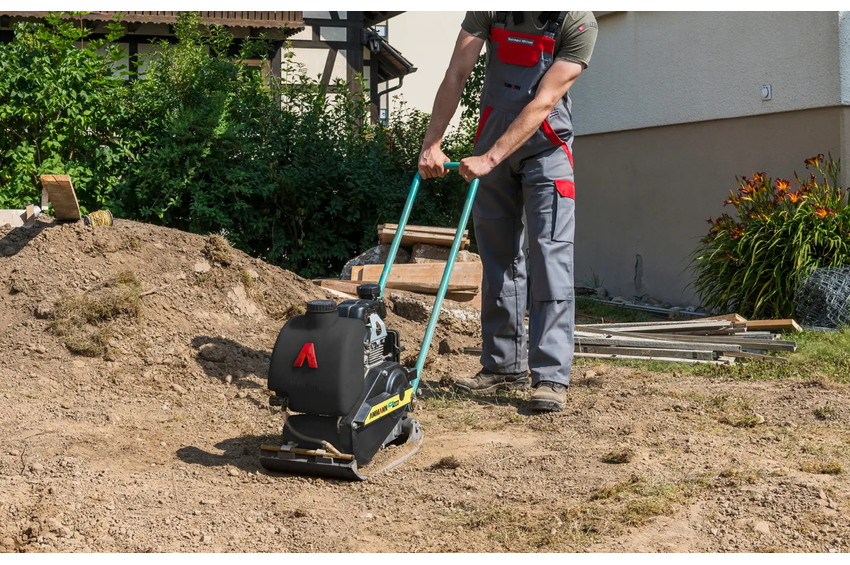

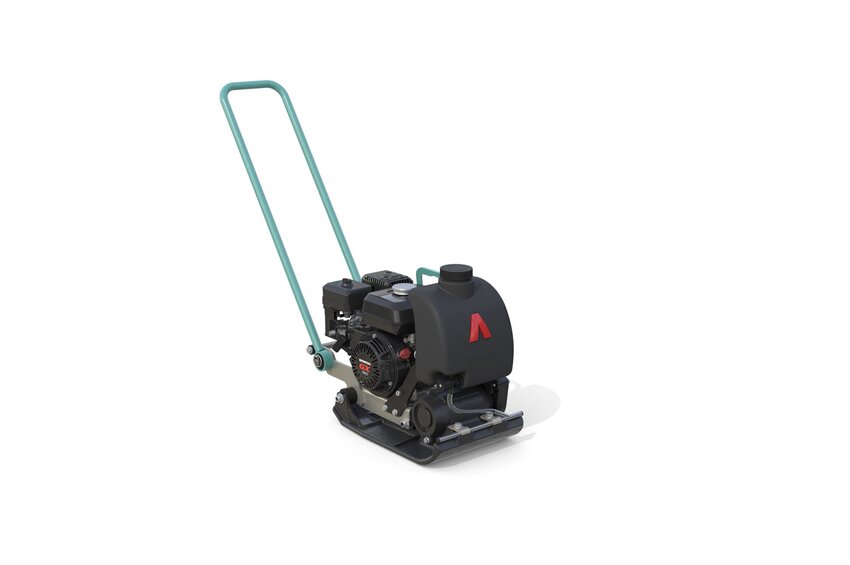

Model
APF 10/33
