PK 76002 EH High Performance

Functional Design. For service friendliness, best appearance and high value retention.

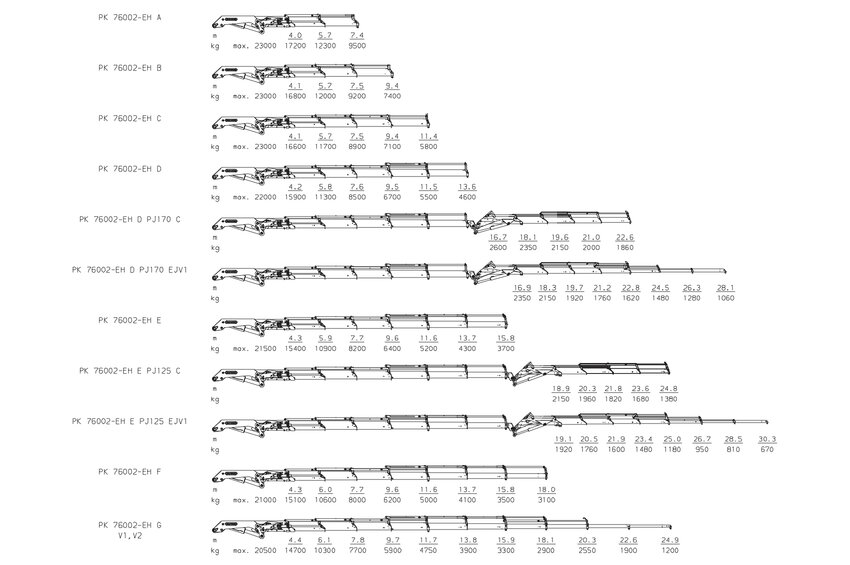

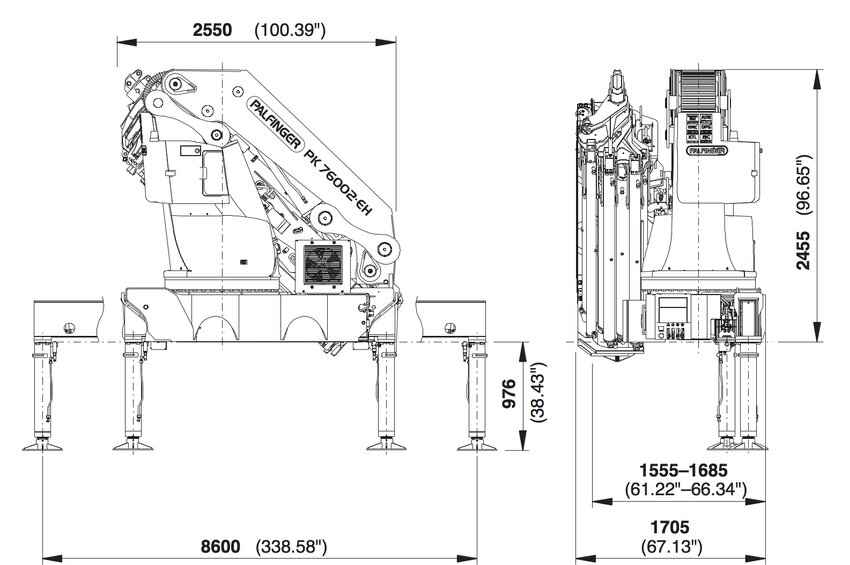

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	69.1 mt	7.6 m	∞ °	4.5 / 7.0 mt	35.0 Mpa	80-100 l/min	5908 kg	2455 mm	2550 mm	1555 mm	7434.45 mm	23000 kg	9500 kg
B	68.2 mt	9.5 m	∞ °	4.5 / 7.0 mt	35.0 Mpa	80-100 l/min	6246 kg	2455 mm	2550 mm	1555 mm	9366.45 mm	23000 kg	7400 kg
C	67.2 mt	11.5 m	∞ °	4.5 / 7.0 mt	35.0 Mpa	80-100 l/min	6580 kg	2455 mm	2550 mm	1555 mm	11368.45 mm	23000 kg	5800 kg
D	66.3 mt	13.7 m	∞ °	7.0 mt	35.0 Mpa	80-100 l/min	7040 kg	2455 mm	2550 mm	1555 mm	13578.45 mm	22000 kg	4600 kg
E	65.6 mt	15.9 m	∞ °	7.0 mt	35.0 Mpa	80-100 l/min	7310 kg	2455 mm	2550 mm	1555 mm	15774.45 mm	21500 kg	3700 kg
F	65.0 mt	18.1 m	∞ °	7.0 mt	35.0 Mpa	80-100 l/min	7730 kg	2455 mm	2550 mm	1685 mm	17963.45 mm	21000 kg	3100 kg
G	64.5 mt	20.4 m	∞ °	7.0 mt	35.0 Mpa	80-100 l/min	7730 kg	2455 mm	2550 mm	1685 mm	20266.45 mm	20500 kg	2550 kg
