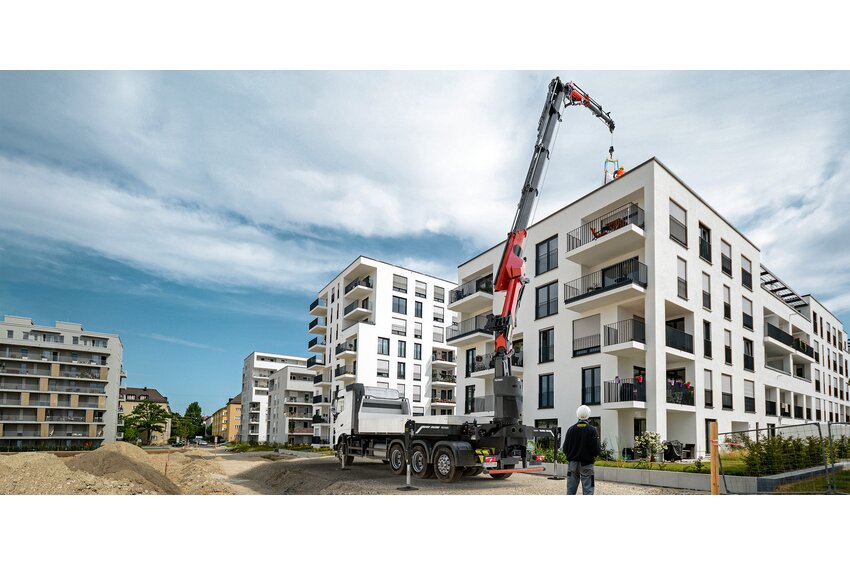

PK 370 TEC

• More intelligent operation with PALTRONIC 180 control electronics
• Extra smooth control thanks to LX-6 control valve
• Very stiff and light boom system thanks to P-Profile
• More efficient and faster due to continuous slewing system
• High user friendliness due to in-house developed radio remote control PALcom P7
• More efficiency with fly jib due to DPS-C
• Maximum utilisation of the working range thanks to extended HPSC
• More lifting power due to S-HPLS
• Practical and attractive due to Functional Design

Technical data

Max. lifting moment	35,0 mt
Max. lifting capacity	10000 kg
Max. hydraulic outreach	21,8 m
Slewing angle	∞
Slewing torque with 1 gear	3,3 mt

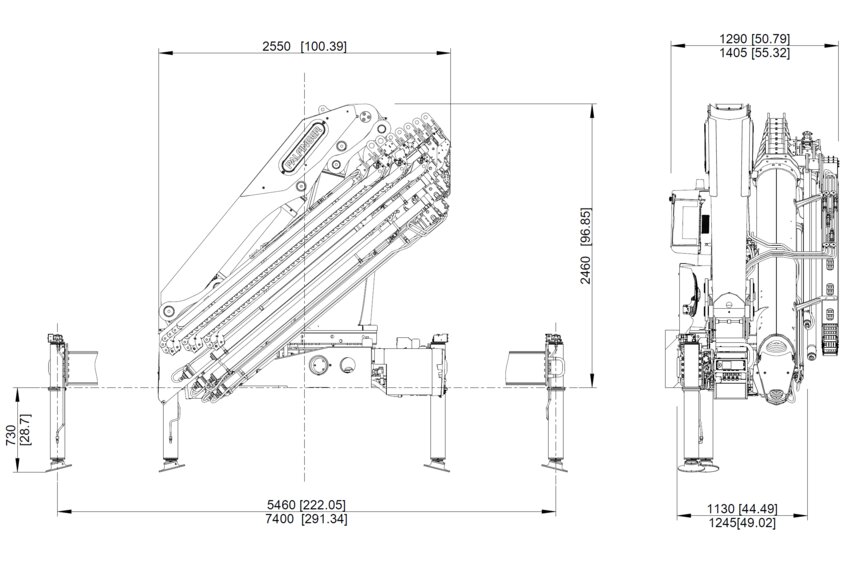

Stabiliser spread (std)	5.6 m
Fitting space required (std)	1,13 m
Width folded	2,55 m
Max. operating pressure	385 bar
Pump capacity	90 - 120 l/m
Weight	3070 t
Slewing torque with 2 gears	4,3 mt
Max. outreach (with fly jip)	32,2 m

Technical data

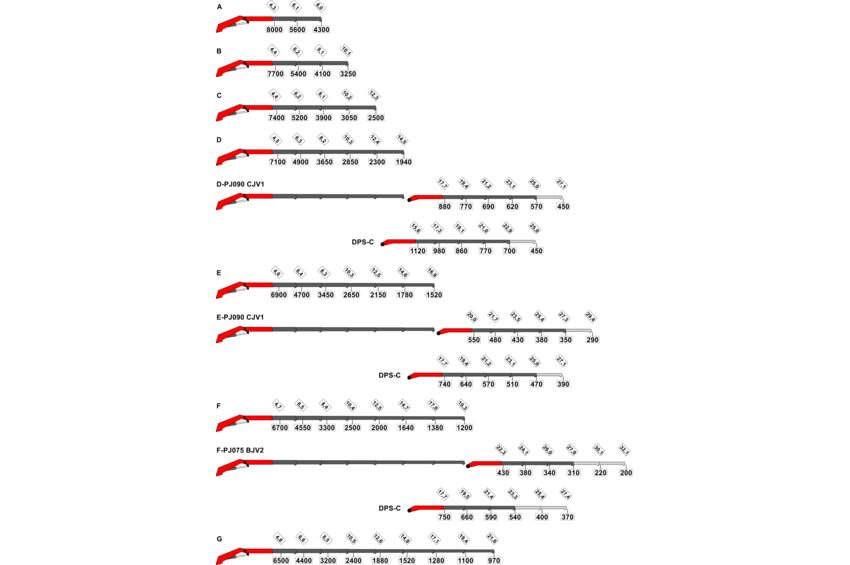

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	34.1 mt	8.1 m	∞ °	3.3 mt	38.5 Mpa	90-120 l/min	3070 kg	2460 mm	2550 mm	1130 mm	8000 mm	-	4300 kg
B	33.5 mt	10.3 m	∞ °	3.3 mt	38.5 Mpa	90-120 l/min	3260 kg	2460 mm	2550 mm	1130 mm	10100 mm	-	3250 kg
C	33.0 mt	12.5 m	∞ °	3.3 mt	38.5 Mpa	90-120 l/min	3450 kg	2460 mm	2550 mm	1130 mm	12300 mm	-	2500 kg
D	32.0 mt	14.7 m	∞ °	4.3 mt	38.5 Mpa	90-120 l/min	3755 kg	2460 mm	2550 mm	1130 mm	14500 mm	-	1940 kg
E	31.6 mt	17.1 m	∞ °	4.3 mt	38.5 Mpa	90-120 l/min	3930 kg	2460 mm	2550 mm	1130 mm	16900 mm	-	1520 kg
F	31.2 mt	19.5 m	∞ °	4.3 mt	38.5 Mpa	90-120 l/min	4075 kg	2460 mm	2550 mm	1245 mm	19300 mm	-	1200 kg
G	30.8 mt	21.8 m	∞ °	4.3 mt	38.5 Mpa	90-120 l/min	4175 kg	2460 mm	2550 mm	1245 mm	21600 mm	-	970 kg
