PK 14002-EH High Performance
Reliable and versatile - perfect partner in the municipal economy
- Higher payloads due to intelligent lightweight design
- Perfect appearance and the highest value retention due to coating technology
- Maximum utilisation of the working range due to HPSC
- Increase in application due to hose assembly
- More lifting power due to E-HPLS

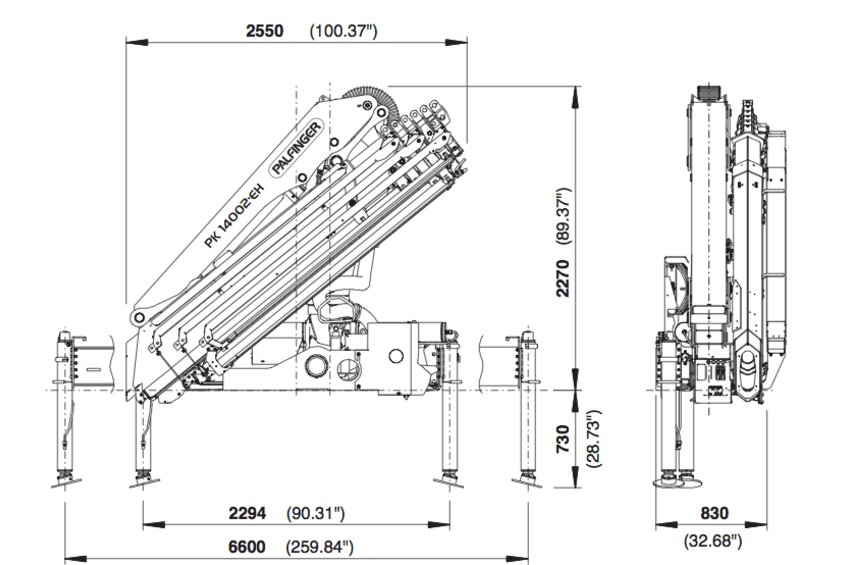

Technical data
| Max. lifting moment | 12,5 mt |
|---|---|
| Max. lifting capacity | 6100 kg |
| Max. hydraulic outreach | 17,0 m |
| Slewing angle | 420° |
| Slewing torque with 1 gear | 1,6 mt |
| Stabiliser spread (std) | 5.0 m |
| Width folded | 2,51 m |
| Max. operating pressure | 350 bar |
| Pump capacity | 50 - 70 l/m |
| Weight | 1789 t |
| Max. outreach (with fly jip) | 23,0 m |

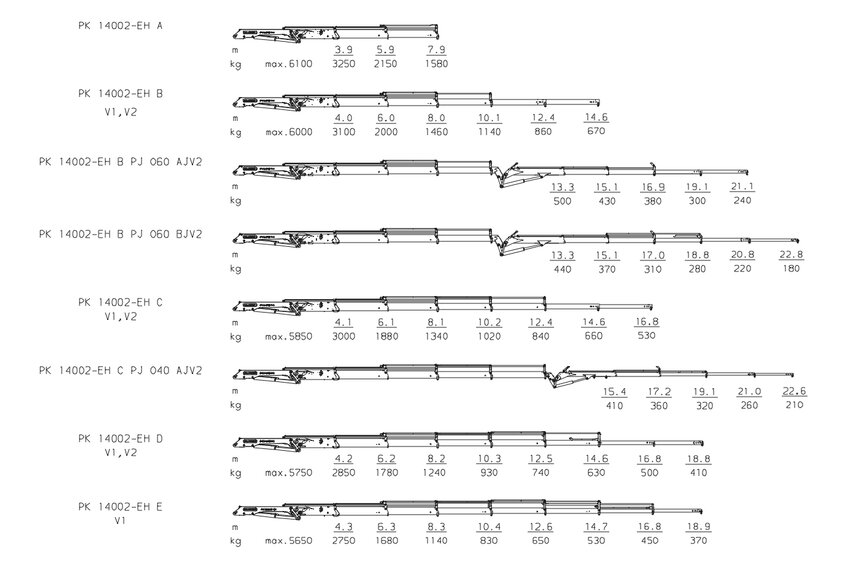

Technical data
| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 12.9 mt | 8.1 m | 420 ° | 1.6 mt | 35.0 Mpa | 50-70 l/min | 1789 kg | 2270 mm | 2510 mm | 830 mm | 7947.72 mm | 6100 kg | 1580 kg |
| B | 12.5 mt | 10.3 m | 420 ° | 1.6 mt | 35.0 Mpa | 50-70 l/min | 1922 kg | 2270 mm | 2510 mm | 830 mm | 10177.72 mm | 6000 kg | 1140 kg |
| C | 12.2 mt | 12.6 m | 420 ° | 1.6 mt | 35.0 Mpa | 50-70 l/min | 2030 kg | 2270 mm | 2510 mm | 900 mm | 12407.72 mm | 5850 kg | 840 kg |
| D | 11.9 mt | 14.8 m | 420 ° | 1.6 mt | 35.0 Mpa | 50-70 l/min | 2131 kg | 2270 mm | 2510 mm | 940 mm | 14637.72 mm | 5750 kg | 630 kg |
| E | 11.6 mt | 17.0 m | 420 ° | 1.6 mt | 35.0 Mpa | 50-70 l/min | 2232 kg | 2270 mm | 2550 mm | 940 mm | 16867.72 mm | 5650 kg | 450 kg |
