PK 14.501 SLD 5
WELL-ENGINEERED HYDRAULIC- AND ELECTRONIC SYSTEMS
- More power in the hook due to Single Link Plus
- High operator friendliness thanks to radio remote control
- Maximum utilisation of the working range due to HPSC
- More lifting power due to A-HPLS
- Higher payloads due to intelligent lightweight design
Technical data
| Max. lifting moment | 13,2 mt |
|---|---|
| Max. lifting capacity | 6200 kg |
| Max. hydraulic outreach | 11,7 m |
| Slewing angle | 420° |
| Slewing torque with 1 gear | 1,6 mt |
| Stabiliser spread (std) | 5.0 m |
| Width folded | 2,55 m |
| Max. operating pressure | 330 bar |
| Pump capacity | 50 - 70 l/m |
| Weight | 1480 t |

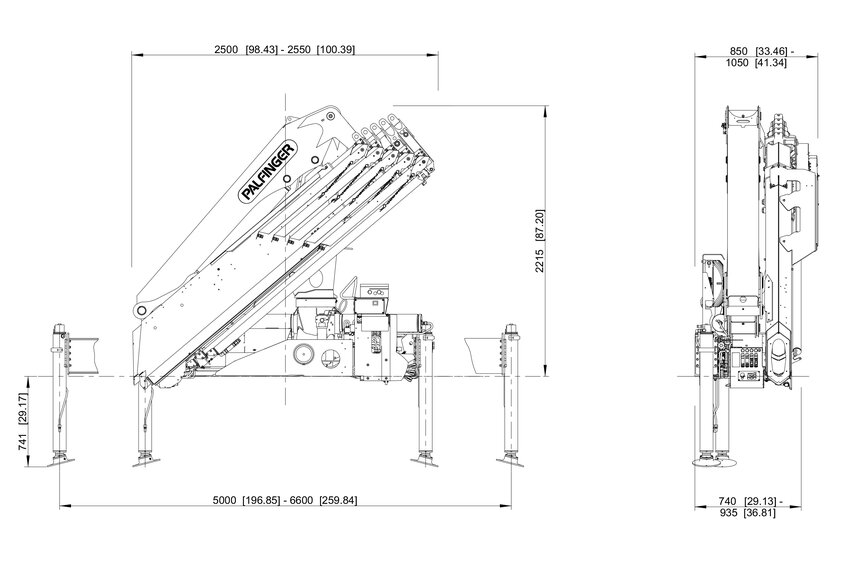

Technical data

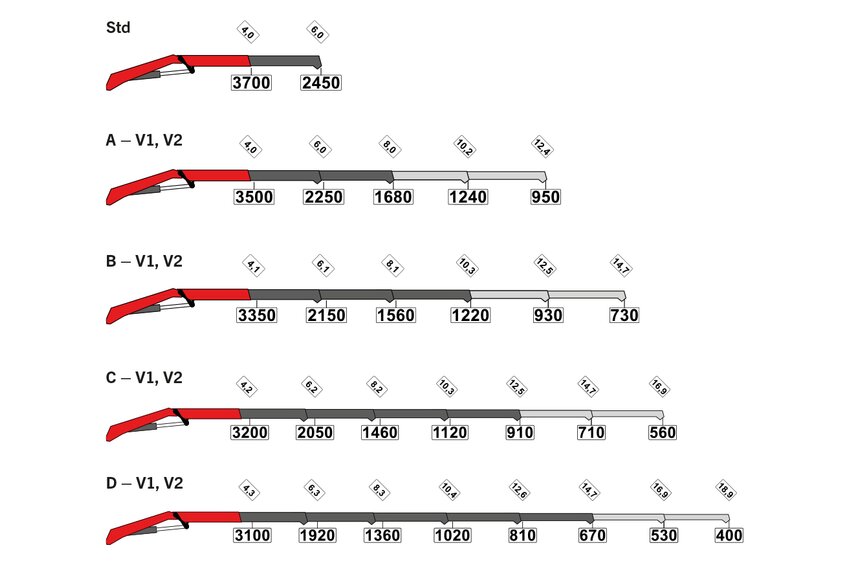

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Std | 14.5 mt | 6.1 m | 420 ° | 1.6 mt | 36.0 Mpa | 50-70 l/min | 1540 kg | 2215 mm | 2550 mm | 740 mm | 6000 mm | - | 2450 kg |
| A | 14.1 mt | 8.2 m | 420 ° | 1.6 mt | 36.0 Mpa | 50-70 l/min | 1690 kg | 2215 mm | 2550 mm | 740 mm | 8000 mm | - | 1680 kg |
| B | 13.7 mt | 10.4 m | 420 ° | 1.6 mt | 36.0 Mpa | 50-70 l/min | 1810 kg | 2215 mm | 2550 mm | 740 mm | 10300 mm | - | 1220 kg |
| C | 13.4 mt | 12.6 m | 420 ° | 1.6 mt | 36.0 Mpa | 50-70 l/min | 1910 kg | 2215 mm | 2550 mm | 740 mm | 12500 mm | - | 910 kg |
| D | 13.1 mt | 14.8 m | 420 ° | 1.6 mt | 36.0 Mpa | 50-70 l/min | 2010 kg | 2215 mm | 2550 mm | 800 mm | 14700 mm | - | 670 kg |
