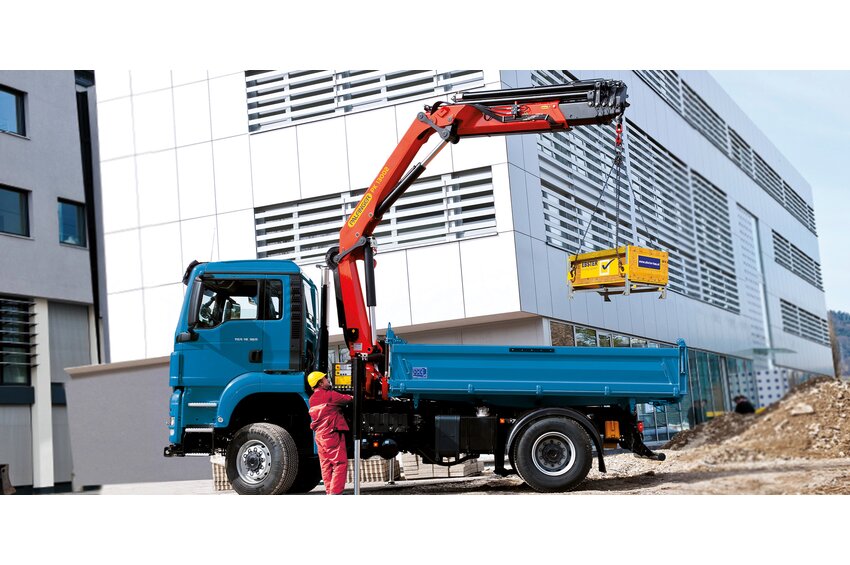

PK 13002 High Performance
Reliable and versatile - perfect partner in the municipal economy
- Higher payloads due to intelligent lightweight design
- Perfect appearance and the highest value retention due to coating technology
- Maximum utilisation of the working range due to HPSC
- Increase in application due to hose assembly

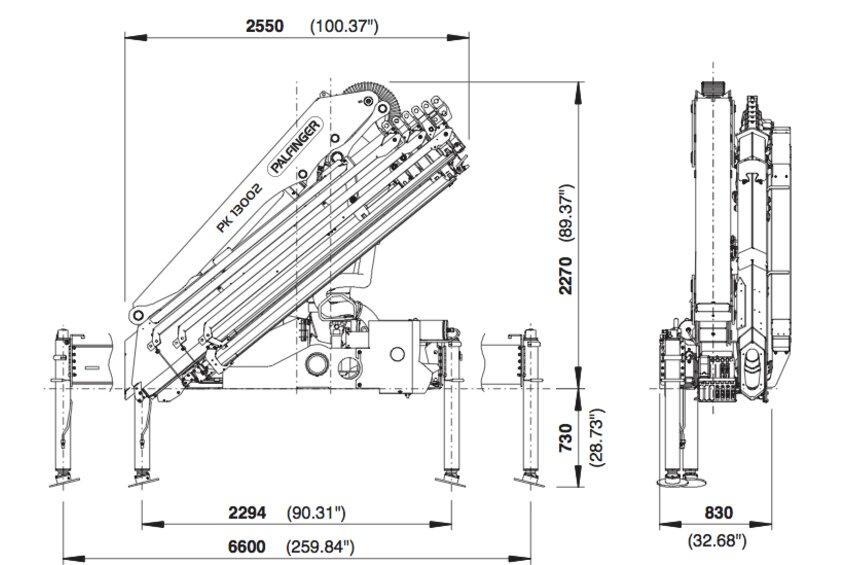

Technical data
| Max. lifting moment | 11,2 mt |
|---|---|
| Max. lifting capacity | 6100 kg |
| Max. hydraulic outreach | 17,0 m |
| Slewing angle | 420° |
| Slewing torque with 1 gear | 1,6 mt |
| Stabiliser spread (std) | 5.0 m |
| Width folded | 2,50 m |
| Max. operating pressure | 320 bar |
| Pump capacity | 35 - 50 l/m |
| Weight | 1764 t |

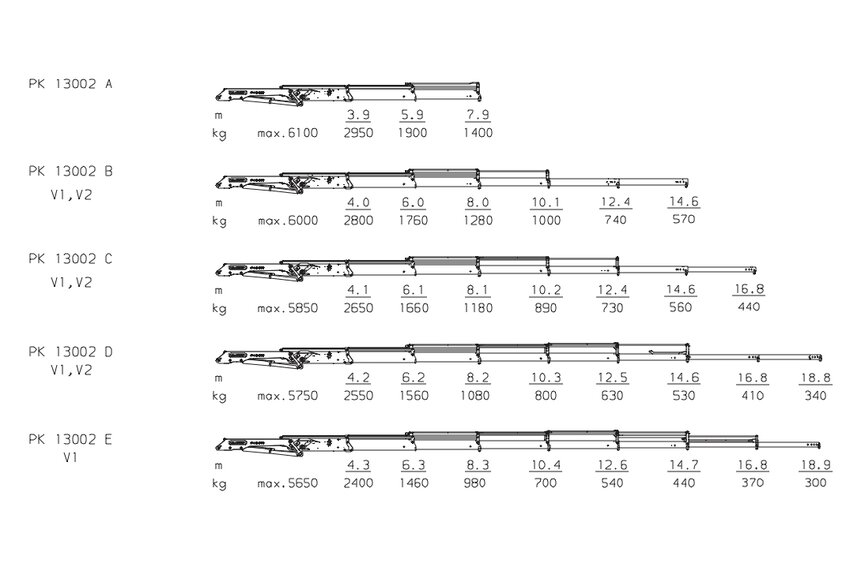

Technical data
| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 11.5 mt | 8.1 m | 420 ° | 1.6 mt | 32.0 Mpa | 35-50 l/min | 1764 kg | 2270 mm | 2510 mm | 830 mm | 8380.382 mm | 2950 kg | 1330.054 kg |
| B | 11.2 mt | 10.3 m | 420 ° | 1.6 mt | 32.0 Mpa | 35-50 l/min | 1897 kg | 2270 mm | 2510 mm | 830 mm | 10610.181 mm | 2800 kg | 938.568 kg |
| C | 10.9 mt | 12.6 m | 420 ° | 1.6 mt | 32.0 Mpa | 35-50 l/min | 2005 kg | 2270 mm | 2510 mm | 900 mm | 12840.079 mm | 2650 kg | 682.483 kg |
| D | 10.6 mt | 14.8 m | 420 ° | 1.6 mt | 32.0 Mpa | 35-50 l/min | 2106 kg | 2270 mm | 2510 mm | 940 mm | 15070.024 mm | 2550 kg | 488.736 kg |
| E | 10.3 mt | 17.0 m | 420 ° | 1.6 mt | 32.0 Mpa | 35-50 l/min | 2207 kg | 2270 mm | 2550 mm | 940 mm | 17300.003 mm | 2400 kg | 338.751 kg |
