PK 13.501K SLD 3

MORE PAYLOAD THANKS TO INTELLIGENT LEIGHTWEIGHT DESIGN

• Shorter load cycle times due to High Speed Extention
• Maximum utilisation of the working range due to HPSC
• Higher payloads due to intelligent lightweight design

Technical data

Max. lifting moment	13,2 mt
Max. lifting capacity	6200 kg
Max. hydraulic outreach	11,7 m
Slewing angle	420°
Slewing torque with 1 gear	1,6 mt
Stabiliser spread (std)	5.0 m
Width folded	2,55 m
Max. operating pressure	330 bar
Pump capacity	35 - 50 l/m
Weight	1480 t

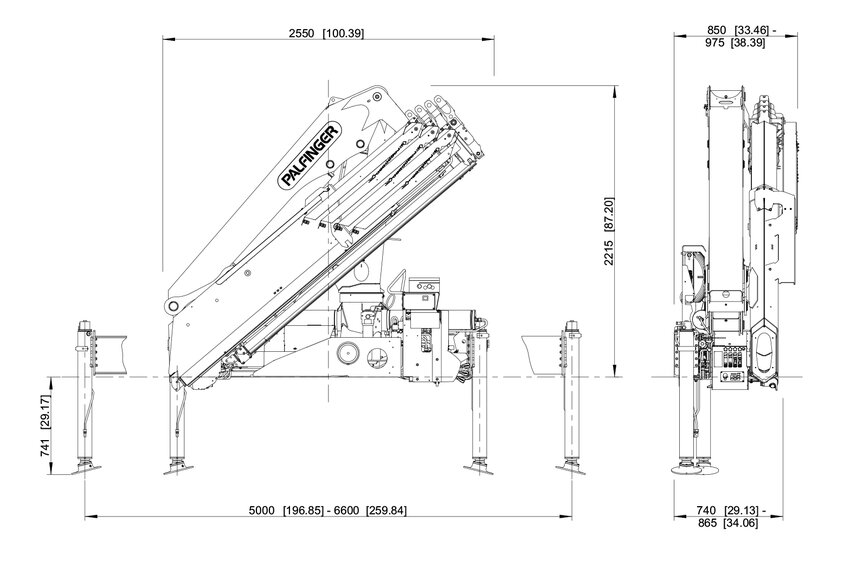

Technical data

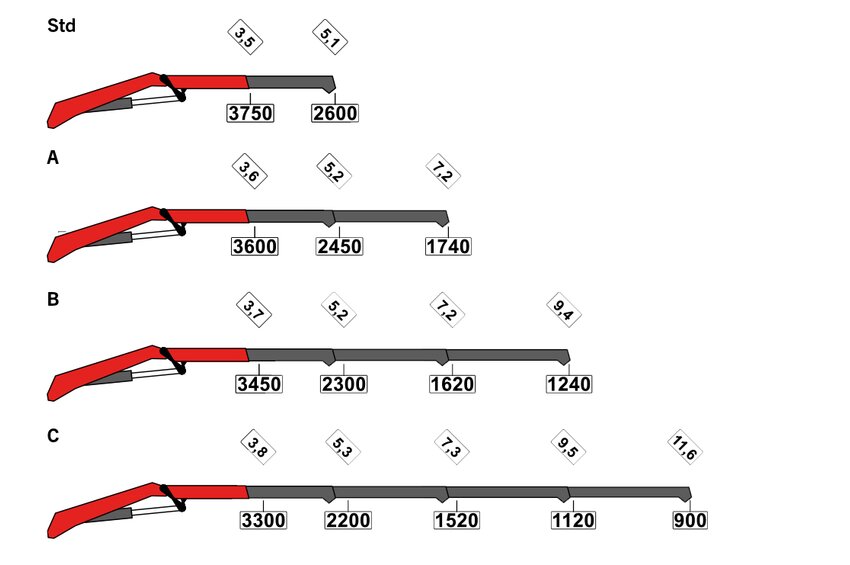

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
Std	13.2 mt	5.2 m	420 °	1.6 mt	33.0 Mpa	35-50 l/min	1480 kg	2215 mm	2550 mm	740 mm	5100 mm	-	2600 kg
A	13.2 mt	7.3 m	420 °	1.6 mt	33.0 Mpa	35-50 l/min	1630 kg	2215 mm	2550 mm	740 mm	7200 mm	-	1740 kg
B	12.6 mt	9.5 m	420 °	1.6 mt	33.0 Mpa	35-50 l/min	1750 kg	2215 mm	2550 mm	740 mm	9400 mm	-	1240 kg
C	12.3 mt	11.7 m	420 °	1.6 mt	33.0 Mpa	35-50 l/min	1860 kg	2215 mm	2550 mm	740 mm	11600 mm	-	900 kg
