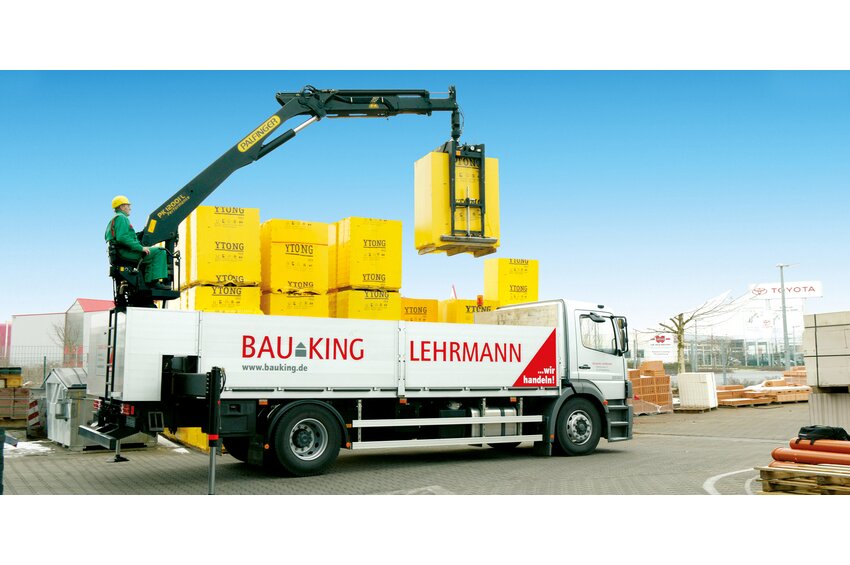

The speedy and safe handling of building materials becomes an easy task with the PK 12001 L Performance. In addition to ist enormous lifting capacity and low dead weight, the safety factor is among the strengths of the PK 12001 L Performance. The Crane is easy to control from the specially designed high-seat, and a perfect overview is also ensured as the work is being carried out.
Technical data
| Max. lifting moment | 11,4 mt |
|---|---|
| Max. lifting capacity | 4800 kg |
| Max. hydraulic outreach | 8,9 m |
| Slewing angle | 420° |
| Slewing torque with 1 gear | 1,5 mt |
| Stabiliser spread (std) | 5.6 m |
| Width folded | 2,50 m |
| Max. operating pressure | 300 bar |
| Pump capacity | 30 - 50 l/m |
| Weight | 1597 t |

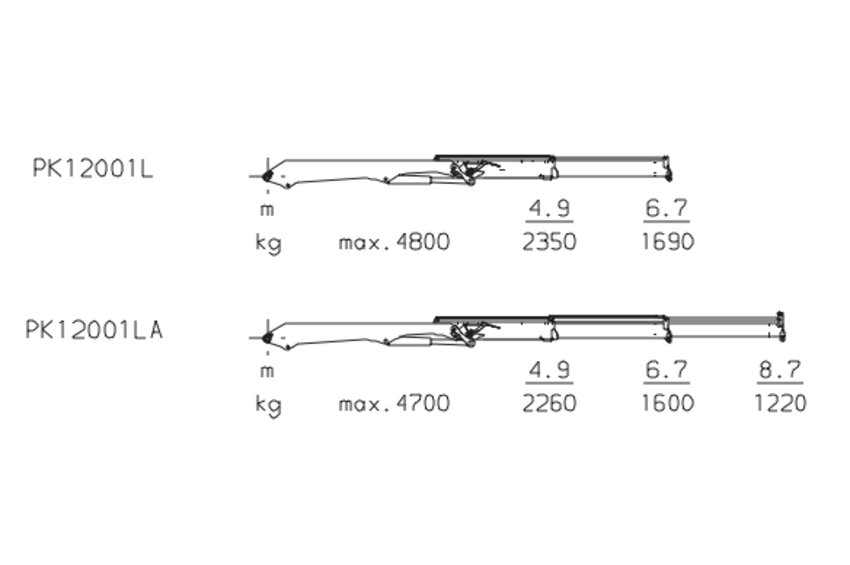

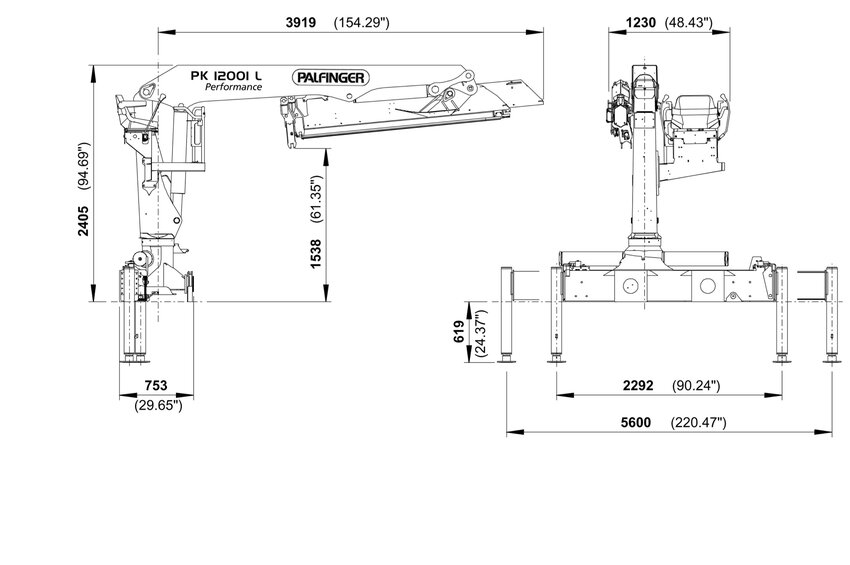

Technical data
| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Std | 11.4 mt | 6.9 m | 420 ° | 1.5 mt | 30.0 Mpa | 30-50 l/min | 1597 kg | 2405 mm | 2480 mm | - | 6700 mm | - | 1690 kg |
| A | 10.9 mt | 8.9 m | 420 ° | 1.5 mt | 30.0 Mpa | 30-50 l/min | 1712 kg | 2405 mm | 2480 mm | - | 8662.61 mm | 6100 kg | 1220 kg |
