PK 12.501 SLD 5
SINGLE LINK AND PERFECT POWER TO WEIGHT RATIO OFFER EFFICIENT LOAD HANDLING
- More power on the hook due to Single Link
- Higher payloads due to intelligent lightweight design
- Maximum reliability due to PALTRONIC
- High degree of user-friendliness thanks to optional radio remote control
- More lifting power due to A-HPLS
Technical data
| Max. lifting moment | 11,4 mt |
|---|---|
| Max. lifting capacity | 5700 kg |
| Max. hydraulic outreach | 12,0 m |
| Max. manual outreach | 15,9 m |
| Slewing angle | 400° |
| Slewing torque with 1 gear | 1,3 mt |
| Stabiliser spread (std) | 3.3 m |
| Max. operating pressure | 360 bar |
| Pump capacity | 45 - 60 l/m |
| Weight | 1170 t |
Technical data

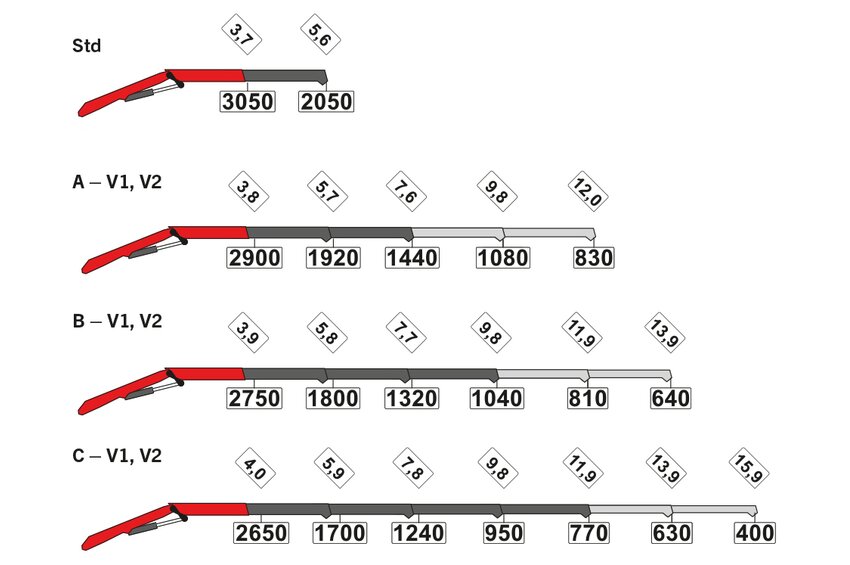

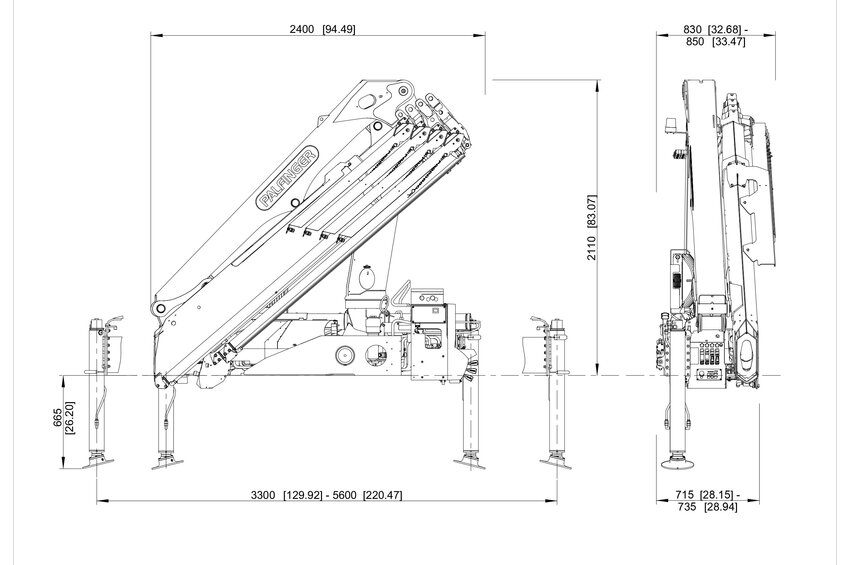

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Std | 11.4 mt | 5.8 m | 400 ° | 1.3 mt | 36.0 Mpa | 45-60 l/min | 1170 kg | 2110 mm | 2400 mm | 720 mm | 5600 mm | - | 2050 kg |
| A | 11.1 mt | 7.8 m | 400 ° | 1.3 mt | 36.0 Mpa | 45-60 l/min | 1280 kg | 2110 mm | 2400 mm | 720 mm | 7600 mm | - | 1440 kg |
| B | 10.8 mt | 9.9 m | 400 ° | 1.3 mt | 36.0 Mpa | 45-60 l/min | 1380 kg | 2110 mm | 2400 mm | 720 mm | 9800 mm | - | 1040 kg |
| C | 10.5 mt | 12.0 m | 400 ° | 1.3 mt | 36.0 Mpa | 45-60 l/min | 1480 kg | 2110 mm | 2400 mm | 720 mm | 11900 mm | - | 950 kg |
