LIGHTWEIGHT AND DIVERSE

The P 250 BK is lightweight, safe and space-saving. Not only do the workman basket and telescopic system with aluminium extrusion profiles keep the weight low, they also make it extremely robust.

  • Lifting and slewing of the main boom without stabilisers available as standard
  • Stabiliser operation from the base for easy and safe support
  • Robust aluminium workman basket with 250kg cage load and integrated anti-squeeze protection function in the knee rail
  • Automatic support stabilising with wheel clearance monitoring

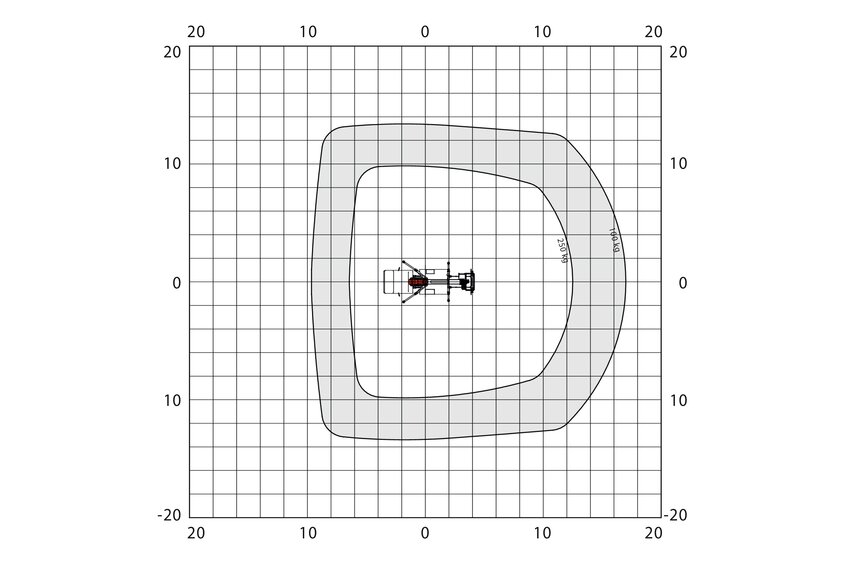

  • Three stabiliser configurations: narrow (in contour), wide (fully extended) and one-sided broad positioning of the stabilisers, as well as automatic release of the associated working range
  • Flat substructure under the workman basket allows users to get as close to obstacles as possible

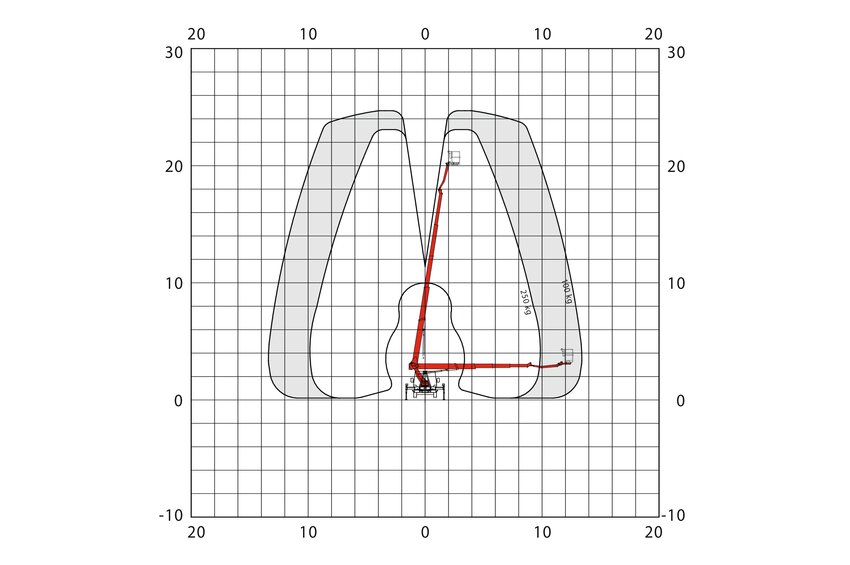

Technical data

product.detail.palfinger.maxHeightofWork 24,7 n
product.detail.palfinger.maxbasketfloorheight 22,7 m
product.detail.palfinger.maxhorizontaloutreach 16,9 m
product.detail.palfinger.maxbasketcapacity 250 kg
product.detail.palfinger.workmanbasket 1,4 x 0,7 x 1,1 m
product.detail.palfinger.schwenkbereichDrehtisch 500°
product.detail.palfinger.hoeheTransportstellung 2,90 m
product.detail.palfinger.breiteTransportstellung 2,22 m
Back to overview
Light Class
Model

P 250 BK

Brand

Palfinger
